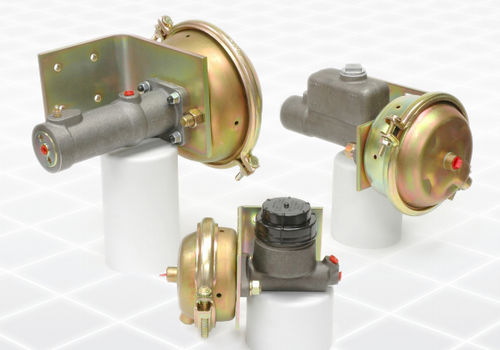

Hydraulic cylinder 460, 461 series

brake

MICO Air/Hydraulic Actuators combine a large surface area air chamber with a smaller diameter bore master cylinder or actuator. MICO's versatile, high-performance air/hydraulic actuators are designed to take advantage of available pressurized air sources to product high hydraulic pressure. They can be used on a variety of vehicles and industrial applications within the construction, material handling, mining, forestry, and agriculture markets. Unique application: A towed vehicle that is hydraulically braked and equipped with an air/hydraulic actuator can utilize the air-actuated brakes of the vehicle that is towning it. Air/Hydraulic Actuator Master Cylinders with Air Chamber MICO Master Cylinder type air/hydraulic actuator is the combination of conventional master cylinder and an air chamber. The master cylinder is single acting type with one piston. Air pressure is used to actuate a push rod in the air chamber. The push rod in turn moves the piston in the master cylinder which forces the hydraulic fluid into the system. Available with or without internal residual check valve Incorporates a conventional master cylinder Sealed diaphragm fluid reservoir Available for industrial and mobile applications Air/Hydraulic Actuator Straight Bore Master Cylinder with Air Chamber This air/hydraulic actuator is similar to those found above. This model however, uses a larger straight bore master cylinder for more displacement and a larger air chamber for more pressure. Like the previous model, air pressure is used to actuate a push rod in the air chamber. In turn, the push rod moves the master cylinder piston which forces hydraulic fluid into the system.
