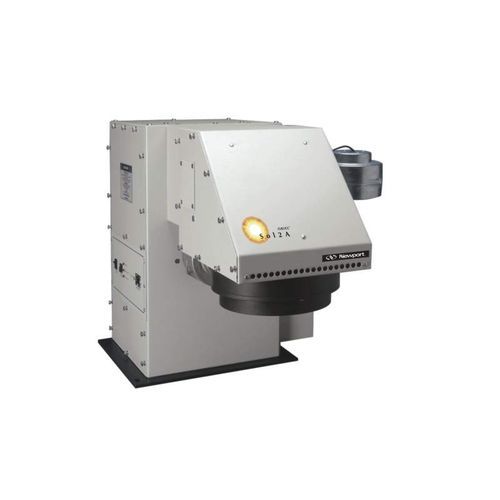

Spatial simulator 940 series

solar

The Oriel® Sol2A™ Class ABA systems take solar simulation to the next level. Certified to IEC 60904-9 Edition 2 (2007), JIS 8904-9 (2017), and ASTM E927-10 (2015) standards, these large area SOL 2A sources use a xenon lamp and proprietary filter to meet, efficiently and reliably, Class ABA performance parameters without compromising the 1.0 SUN output power. The result is a cost-effective system designed for laboratory and/or production environments. •Class A spectral match •Class B spatial non-uniformity of irradiance •Class A temporal instability •Temperature sensors and interlocks ensure operator safety •Includes Class ABA calibration certificate for IEC, ASTM and JIS Class A Spectral Match Spectral match is indicated by the first letter in the solar simulators class rating. An ideal spectral match for a solar simulator is based on the percentage of the integrated light intensity in 6 spectral ranges. A solar simulator with a Class A spectral match may not deviate more than 0.75 to 1.25 times the ideal percentage in each spectral range. Spectral match for all Oriel solar simulator models installed with the AM 1.5G spectral correction filter is shown to easily meet IEC, JIS, and ASTM Class A requirements. For more information about these solar simulator standards, please see our "Solar Simulator Standards — Definitions & Comparisons" technical note. Class B Spatial Uniformity of Irradiance The irradiance uniformity over the working area is indicated by the second letter in a solar simulator class rating, and is the most difficult requirement to achieve and maintain.
