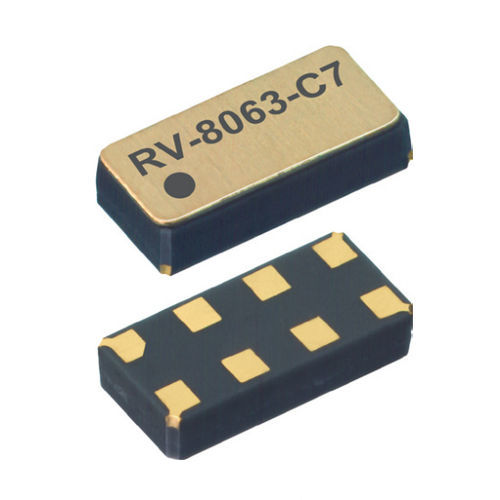

Real-time clock module RV-8063-C7

RV-8063-C7 is a CMOS real-time clock/calendar module optimized for low power consumption. An Offset register allows to compensating the frequency deviation of the 32.768 kHz clock. All addresses and data are transferred serially via a Serial Peripheral Interface (SPI-bus) with a maximum data rate of 7 Mbit/s. The register address is incremented automatically after each written or read data byte. This ultra small RTC module has been specially designed for miniature and cost sensitive high volume applications. User programmable offset value. Oscillator stop detection. Provides year, month, date, weekday, hours, minutes and seconds. Automatic leap year calculation: 2000 to 2099. Timer and Alarm functions. Clock output frequencies: 32.768 kHz to 1 Hz. Automotive qualification according to AEC-Q200 available. IoT Metering Industrial Automotive Health Care Wearables, Portables
