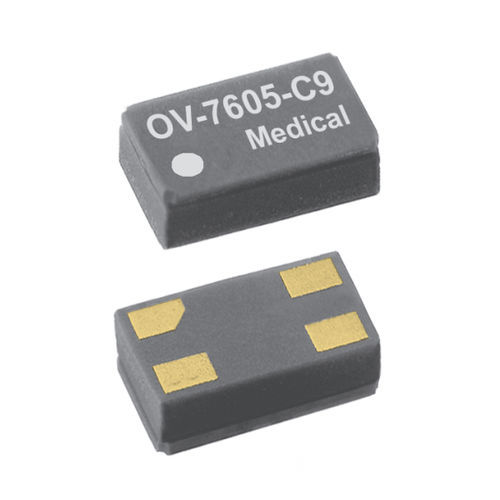

Crystal oscillator OV-7605-C9
electronicsurface-mounttuning fork

crystal oscillator
crystal oscillator
Add to favorites
Compare this product


Characteristics

Type
crystal
Technology
electronic
Other characteristics
surface-mount, tuning fork
Electrical characteristics
low-frequency, low-power
Domain
medical
Frequency

32.77 kHz

Description

The OV-7605-C9 Medical is a low frequency SMT Oscillator Module built with an integrated CMOS circuit together with Tuning Fork Crystal Resonator. Manufactured in accordance with the highest quality production technologies, it operates under vaccum in a Helium impervious full ceramic package. OV-7605-C9 Medical is dedicated for specific use in Class III implantable medical devices and benefits from long-term reliability which is of utmost importance and a hallmark of Micro Crystal’s entire medical implantable grade portfolio. Safe for Helium environment: Ceramic lid with gold-tin preform-seal for best long-term hermeticity and aging stability Proprietary manufacturing and testing processes Extended operating temperature range Customer specific testing/screening on request Components and manufacturing traceability records retained Small size, low profile, lightweight Wide supply voltage range Very low power consumption CLKOUT enable/disable Pacemakers Defibrillators Neurostimulators Cardiac Monitoring Devices Implantable Drug Delivery Pumps Infusion Pumps Cochlear Implants Smart Orthopedic Implants
