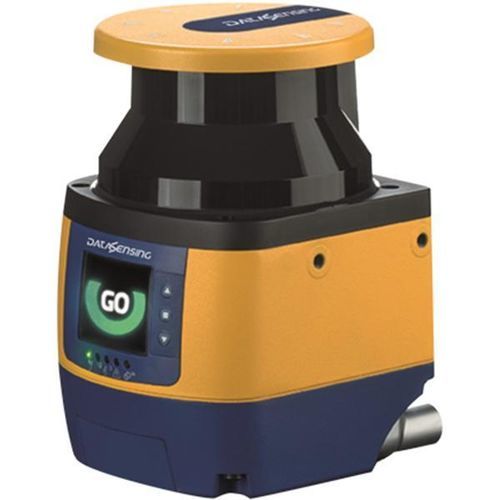

2D laser scanner head SLS10

high-precisionhigh performance

Overview

• Almost 240 m2 safely monitored, with 10 m over 275°
• Dimensions (w,d,h): 102 , 112.5, 152 mm
• Easy programming with intuitive and universal Graphic User Interface
• Advanced dust filtering
• I/O connection with standard M12 cables
• Up to 3 simultaneous safety zones
• 2 Warning zones up to 40 m
• Up to 70 zone sets
• 30/40/50/60/70/120 mm selectable detection capability
• Partial dynamic muting
• Metal brackets allowing full orientation and fast replacement
• Advanced measurement data protocol
• Colour graphic display for monitoring and diagnostics
• Speed and positional measurement with encoders input

Features and performances
Angular resolution: 0.1° .. 0.059°
Safety range (min): 0.05 m
Safety range (max) [detection capability]: = 10 m
Warning range (max): 40 m
Detectable target remission: 1.8% … 1000%
N° of simultaneous safety zone (max): 3
N° of simultaneous warning zone (max): 2
N° of zone set (max): 20 (with M12-17 poles connector); 70 (with M12-17 poles + M12-8 poles connectors)
N° of reference point set (max): 70
Response time max: Min 62 ms @5.5 m; 84 ms @9 m; 103 ms @10 m programmable
Tolerance Zone: 100 mm
Supplement for retroreflectors on scan plane in front of a safety zone: 200 mm

Safety parameters
Type: 3 (EN ISO 13849-1)
SIL: 2 (IEC 61508)
Cat.: 3 (EN ISO 13849-1)
PL: d (EN ISO 13849-1)
TM (Mission Time): 20 years (EN ISO 13849-1)

Outputs
Highspeed input: 4
Configurable Inputs max number: 12 (4 High Frequency for Encoders)
Configurable Inputs/Output max number: 4
Configurable Output max number: 2

Electrical data
Power Supply: 16.8 V <= Vdc <= 28.8 V
Power consumption: 8 W @24 V, Single device, without load
Protection class: III (EN/IEC 61140)

Mechanical data
Dimensions: 102 x 113 x 152 mm
Material: Metal - Aluminium / PMMA
Housing material: Painted aluminium / PC
Optic window material: PMMA

Communication
Network Interfaces: 10/100 Mbit/s Ethernet

HMI/UI
Configuration and monitoring interfaces: DL Sentinel 5.0 (with Optima Tune Technology)
LED indicators: OSSD / Warning / Interlock

Environmental data
Humidity: 15 ... 95 %
Enclosure: IP 65 (EN 60529)
Operating Temperature: -10 ... 50 °C
Storage temperature: -20 ... 70 °C
Vibration Resistance: According to IEC 61496-1 (4.3.3.1;4.3.3.2;5.4.4.1) Class 3M7 (Stationary Use) Class 5M1 (Ground vehicle Installation)
Shock Resistance: According to IEC 61496-1 (4.3.3.1;4.3.3.3;5.4.4.2) IEC 61496-3 (5.4.4); IEC 60068-2-75 Class 3M7 (Stationary Use) Class 5M1 (Ground vehicle Installation)

Optical Data
Laser Wavelength: 905 nm
Mono/Color: 3 ns
Laser class/Laserklass: CLASS 1 (EN 60825-1:2014)

Functions
Generic Alarm: available
Clean Window Alarm: available
Muting enable: available
Muting: available
Override: available
Dust Filtering: available
EDM (External Device Monitoring): available
Partial Muting: available
Pre-alarm (warning): available
Advanced Data transfer protocol: available
Reset (restart cycle): available
Manual/automatic restart: available
Shut-off (mute): available
Encoder input: available
Start-up external trigger: available
Encoder management for zone set switch (speed and positional): available

Technical specifications

• Product name: Enhanced Laser Sentinel SLS10
• Model / denomination commerciale: SLS-M10-E-1708-E
• Product code shown on page: 958000035
• Monitored area: almost 240 m2 (10 m over 275°)
• Selectable detection capability: 30/40/50/60/70/120 mm
• Safety zones: up to 3 simultaneous
• Warning zones: up to 2 (up to 40 m)
• Zone sets: up to 70 (with connectors as specified)
• Angular resolution: 0.1° .. 0.059°
• Response time (programmable): from 62 ms up to 103 ms depending on distance
• Power supply: 16.8 - 28.8 Vdc; power consumption 8 W @24 V (no load)
• Protection / Enclosure: IP65
• Operating temperature range: -10 to 50 °C
• Materials: Metal - Aluminium / PMMA; housing painted aluminium / PC; optic window PMMA
• Network: 10/100 Mbit/s Ethernet
• HMI: DL Sentinel 5.0 GUI with colour graphic display
• Safety certifications indicated on page: UL, TUV, CE, UKCA
