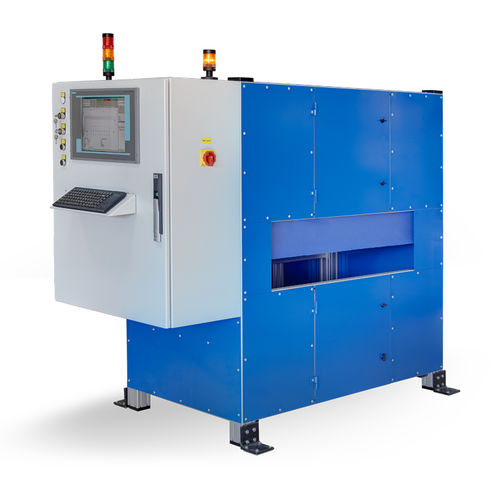

Optical inspection machine thicknessCONTROL TCP 8301.I

for tiresmeasurementdefect

The non-traversing profilometers of the thicknessCONTROL TCP 8301.I series enthuse with the complete profile measurements in one single shot. Working nearly without moving parts the systems provide a solution at low maintenance requirements. Based on the optical triangulation principle two parallel lines are projected by laser light sources onto the upper and the lower side of the material. The reflection of the laser light is detected by cameras. The measuring system contains fully automated integrated calibrations. The patented process of the calibration takes approximately 5 minutes. The visualization software of the profilometer contains tools for statistic processing and exporting measurement results in different formats. The measuring system is fully covered; therefore the influence of external light on the measurement process and the creation of parasitic reflections is minimized. Prepared for additional integration of the length inspection dimensionCONTROL TLI 8303.I and the dimensionCONTROL TPWI 8302.LC, the profilometer is the efficient base for a complete quality control of an extrusion line.
