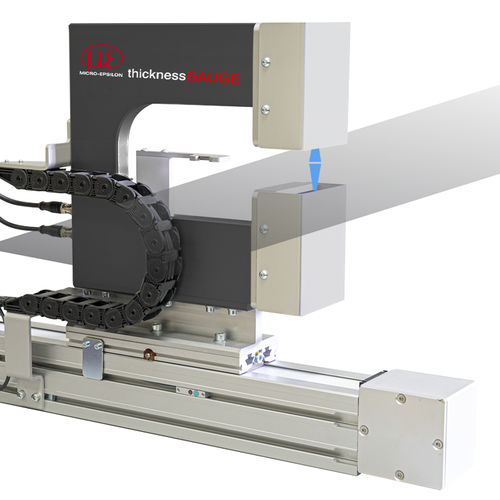

Stationary thickness gauge thicknessGAUGE C.LP

sheet metalfor sheet materialsB-scan

thicknessGAUGE C.LP sensor systems use laser profile scanners for the thickness measurement. These scanners project a laser line onto the surface to be measured. The laser line compensates for strip tilting and enables profile averaging. The laser line measuring technique makes it possible to measure the thickness of structured materials such as embossed surfaces and perforated plates. The thicknessGAUGE sensor systems are used in strip processes and plate production in order to measure the thickness continuously at individual measuring points. These systems are designed in such a way that they can be used as both initial equipment and for retrofitting of existing facilities. Based on high precision and equipped with intelligent sensor technology, these sensor systems are used in various industries. Powerful analysis and control software: thicknessGAUGE systems are equipped with a multi-touch capable software package for analysis, presentation and archiving of monitored production data. This software enables different measurement modes such as fixed track thickness measurement at any position, measurement of the thickness profile, measurement of several longitudinal trends, an SPC package and automated verification of the measuring system's capability. It ensures easy and fast verification of the measuring system capability which is individually adjustable. Features for documentation and process control: • - Article database • - Production archive • - Statistical evaluations • - Limit value monitoring with return back to production (optional fieldbus interfaces) • - Verification of measuring system capability
