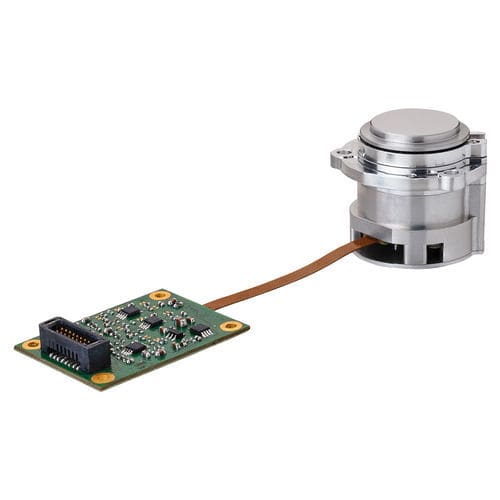

Tip-tilt fast steering mirror FSM3000

roundflataluminium

Fast Steering Mirrors (FSM) from Micro-Epsilon are miniaturized tilting mirrors used for precisely deflecting light or laser beams. The FSM3000 models combine superior precision with maximum dynamism. They are easy to integrate and very robust, which is why they are used, among other things, for satellite communication in space. A powerful voice-coil actuator and high-resolution embedded coil eddy current sensors allow for ultra-precise movements and a wide tilt angle. Thanks to the excellent mirror quality, the FSM meets the strictest optical standards. Series-optimized for high quantities – ideal for applications in industry, optics and aerospace & defense. Special features: - Large tilt angle of ±1.5° - High dynamism with outstanding control behavior up to 1.5 kHz - Large precision mirror (Ø 20 mm) with high reflectivity for lower optical losses - High-resolution position measurement < 0.7 µrad - Extremely compact and robust thanks to voice coil and patented sensor technology - Suits almost all environments: aerospace & defense, optics & industry - Proven performance in series use in satellite communication
