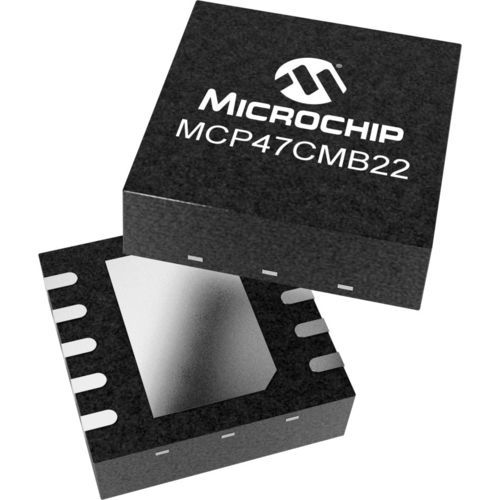

Digital-analog converter MCP47CMB22
powerserialindustrial

digital-analog converter
digital-analog converter
digital-analog converter
Add to favorites
Compare this product

Characteristics

Type
digital-analog, power
Bus
serial
Other characteristics
industrial, fast

Description

Features: 12-Bit Resolution I²C Interface Operating Voltage Range: 2.7V to 5.5V 1 LSB Integral Nonlinearity (INL) Specification Fast Settling Time: 16 µs (typ) Nonvolatile Memory (MTP) size: 32 locations Device Overview Summary MCP47CMB22 is a dual channel, 12-bit, buffered voltage output Digital-to-Analog Converter (DAC) with MTP memory and an I²C Compatible Serial Interface. This device provides four different voltage reference options: device VDD, external VREF (Buffered or unbuffered) and internal bandgap. It offers 1 LSB Integral Non-Linearity (INL) with low power consumption and fast settling time of 6µs. This device has integrated MTP memory that can be written up to 32 times, for reach specific register. It is suitable for consumer and industrial applications, such as set point or offset trimming, sensor calibrations and motor control applications. For different resolutions and number of output channels, please check out our other parts in the MCP47CMBxx family. Additional Features 12-Bit Resolution I²C Interface Operating Voltage Range: 2.7V to 5.5V 1 LSB Integral Nonlinearity (INL) Specification Fast Settling Time: 16 µs (typ) Nonvolatile Memory (MTP) size: 32 locations Power-on/Brown-out Reset (POR/BOR) Protection DAC Voltage Reference Options: Device VDD External VREF (buffered or unbuffered) Internal Band gap (1.227V typical) Packages Types : 16-lead 3 x 3 QFN, 10-lead MSOP, 10-lead 3 x 3 DFN Temperature: -40°C to +125°C Parametrics Name Value Typical Operating Current (µA) 500 Resolution (Bits) 12 DACs per Package 2 Output Settling Time (µs) 16 DNL (LSB) 1 Temp. Range (°C) -40°C to +125°C Interface I²C™
