Small blower U51DL-024KK-4airradialsingle-stage
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- radial
- Number of stages
- single-stage
- Voltage / frequency
- 24 Vdc
- Other characteristics
- compact, small
- Flow
500 l/min
(132.09 us gal/min)- Operating pressure
5,400 Pa
(0.783 psi)- Nominal power
Min.: 41 W
(0.056 hp)- Sound level
66 dB
Description

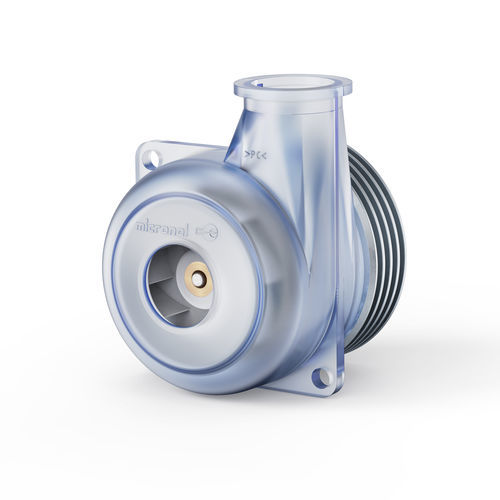

The U51DL-4 series is a radial blower manufactured by Micronel. This compact blower can be used in medical applications. Its housing is made of the PC material with its impeller of PA material. It is equipped with a brush-less and sensor-less three-phase motor with integrated driver electronic. It enables connection through single leads AWG-24.
