- Microtech Gefell GmbH
Monitoring software data acquisition and analysisdata acquisitionfor test
Add to favorites
Compare this product
Characteristics
- Function
- analysis, monitoring, configuration, for test, data acquisition, data acquisition and analysis, verification, signal processing, flash memory update
- Applications
- microphone
- Type
- real-time
- Operating system
- Windows, 32/64-bit Windows system, Linux
Description
Description
MicrophoneCenter is the administration software for Microtech Gefell microphones with digital USB connection. Its simple graphical user interface enables an intuitive workflow for configuring, monitoring and verifying one or more USB microphones connected to a computer. The software analyses the digital output signal arriving at the USB interface so that correct transmission can be checked before it is taken into a measurement or recording application.
Features
Supported microphones / preamplifiers
Technical data
Operating system
Windows: Windows 10 (64-bit) or higher
macOS: macOS 15 (Sequoia) or higher
Linux: 64-bit (Ubuntu 20.04 or higher)
Hardware requirements / recommendations
Processor: 64-bit (x86-64 / Apple Silicon)
RAM: Minimum 2 GB, recommended 4 GB
Free disk space: approx. 200 MB
Display resolution: Minimum 800 x 600 pixels, recommended 1920 x 1080 pixels
Characteristics / specifications
MicrophoneCenter is the administration software for Microtech Gefell microphones with digital USB connection. Its simple graphical user interface enables an intuitive workflow for configuring, monitoring and verifying one or more USB microphones connected to a computer. The software analyses the digital output signal arriving at the USB interface so that correct transmission can be checked before it is taken into a measurement or recording application.
Features
- Automatic detection and unique labeling of connected USB microphones
- Graphical user interface for intuitive workflow

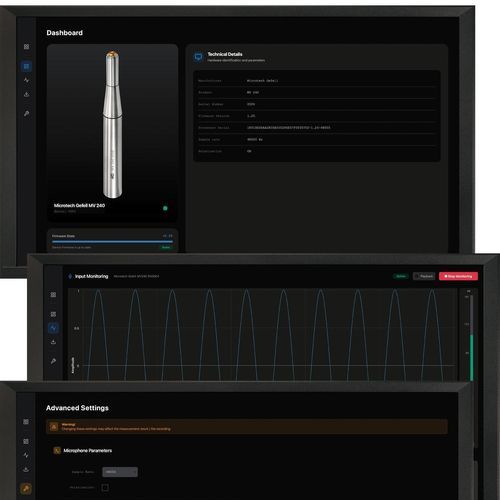

- Dashboard showing identification, hardware/firmware and technical parameters
- Input monitoring with display of RMS and peak values
- Support for internal digital signal generators and acoustic calibrator for electrical and acoustic testing
- Update functions for software and microphone firmware
- Control and adjustment of microphone parameters
Supported microphones / preamplifiers
- MV 240 USB
Technical data
Operating system
Windows: Windows 10 (64-bit) or higher
macOS: macOS 15 (Sequoia) or higher
Linux: 64-bit (Ubuntu 20.04 or higher)
Hardware requirements / recommendations
Processor: 64-bit (x86-64 / Apple Silicon)
RAM: Minimum 2 GB, recommended 4 GB
Free disk space: approx. 200 MB
Display resolution: Minimum 800 x 600 pixels, recommended 1920 x 1080 pixels
Characteristics / specifications
- Product: Administration software for digital USB microphones
- Detected parameters: Manufacturer, type, serial number
- Hardware/firmware parameters: Processor number, firmware version
- Technical parameters: Sampling frequency, polarization voltage
- Input monitoring: Display of RMS and peak values
- Internal signal generators: 1 kHz sine signal, 1 Pa RMS (fixed) or adjustable amplitude
- Integrated software and firmware update functions
