Optical particle size analyzer CAMSIZER® X2+

dynamic image analysisdigital image processingfor the food industry

Overview

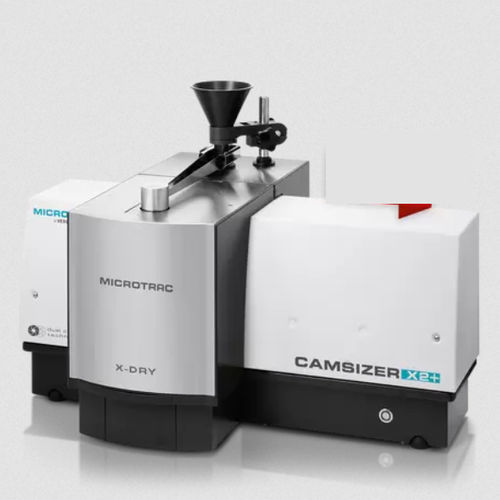

The CAMSIZER® X2+ is a versatile particle size and shape analyzer based on Dynamic Image Analysis (ISO 13322-2). It combines Dual Camera technology with ultra-bright LED stroboscopic illumination and modular dispersion options to measure powders, granules and suspensions across a wide range from 0.9 µm to 8 mm. The system captures and evaluates hundreds of thousands to millions of particle images within 1–3 minutes, suitable for R&D and routine quality control.

Key capabilities

• Particle size and shape analysis from 0.9 µm to 8 mm (module-dependent)
• High optical resolution and image rate (> 420 images/s)
• Dual Camera Technology: ZOOM camera for fine particles and BASIC camera for larger particles
• Precise analysis of broad or multimodal size distributions
• Detection and quantification of oversize/undersize particles and agglomerates
• Multiple evaluation options (size models, shape parameters, particle library, single-frame evaluation, etc.)
• Fast measurement time (approx. 1–3 minutes) and high sample throughput
• Modular X-Change system for dry and wet measurements

Modular X-Change System
The X-Change system offers three dispersion modules to match sample requirements:

• X-Jet (air pressure dispersion): Venturi nozzle dispersion for powders; pressure adjustable 0–460 kPa; interchangeable nozzles extend the measurable range.
• X-Flow (wet dispersion): Closed-loop suspension measurement through a glass flow cell with integrated ultrasonic unit and pump; compatible media include water, alcohols and nonpolar organic solvents.
• X-Fall (gravity dispersion): Non-destructive free-fall measurement for sensitive samples; sample recovery possible; suitable up to 8 mm.

Measurement principle and software
Dual Camera Technology records particle projections with two synchronized cameras (ZOOM and BASIC). A dedicated algorithm merges camera data to deliver accurate size distributions over more than three decades. DIMENSIONS software captures numerous parameters per particle and provides intuitive workspaces, report templates, SOP management, LIMS connectivity and a 21 CFR Part 11 compatible option.

Applications
The CAMSIZER® X2+ is used across industries to characterize bulk material properties dependent on particle size and shape: metal powders, chemicals, pharmaceutical powders and granules, glass beads, plastics, wood fibres, food (coffee, salt, sugar), construction materials, abrasives, sand, refractory materials and more.

Technical specifications

• Measuring principle: Dynamic Image Analysis (ISO 13322-2)
• Measuring range: 0.9 µm to 8 mm (general); X-Jet (air): 0.9 µm to 8 mm depending on nozzle; X-Fall (gravity): 10 µm to 8 mm; X-Flow (wet): 0.9 µm to 1 mm
• Analysis modes: dry and wet
• Measurement time: approximately 1–3 minutes (depending on statistics and mode)
• Cameras: 2 (Dual Camera Technology), each > 5.0 MPixel, > 420 images/s
• Sample volume: < 20 mg to 500 g (mode and sample dependent)
• Analysis area width: ~350 mm²
• Digital resolution: 0.9 µm per pixel
• Measured parameters: particle size (equivalent diameters, length, mean diameter, etc.) and particle shape (aspect ratio, circularity, symmetry, convexity, compactness, etc., acc. ISO 9276-6)
• Dimensions (W x H x D): approx. 850 x 580 x 570 mm
• Weight (measuring unit): approx. 50 kg
• Operating station: Quad Core PC with Windows 11, monitor, keyboard, mouse, network and interface cards, DIMENSIONS evaluation software
