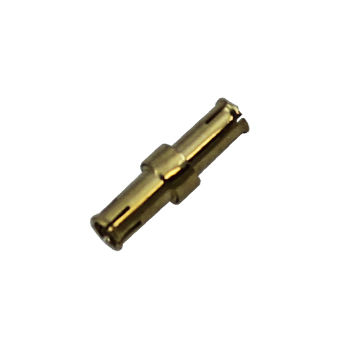

Board-to-board connector 54033-001B

dataPCBcircular

SuperMini Board-to-Board solutions optimize interconnect performance for board-to-board stacking applications. Available bullets enable board-to-board spacing as close as 3 mm, assuring transmission line dependability for tightly stacked PCBs. Low mating insertion force allows for an increased density of interconnections per board. Unique bullet design enables extended mating and de-mating cycles. Product Type Bullet Frequency (GHz) 18, 27, 36, 40, 50, 67 Bullet Length 0.113 Tools, C-bore T-54033-2 ELECTRICAL Mode Free Through 67 GHz VSWR: 1.13:1 Max (1/2 Device Under Test: Mated PCB Receptacles, Bullets and Test Cable Assemblies) Low Insertion Loss Mating / Demating Force: Smooth Bore: 6 oz / 6 oz, Detent: 9 oz / 12 oz (typ.) Meets MIL-PRF-39102 for resistance to corrosion, vibration, mechanical shock and thermal shock.
