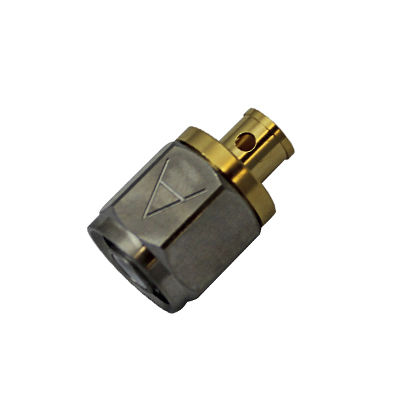

RF connector 52770-010P

coaxialmalepolarized

SMKey high-security keyed coax connectors provide a failsafe mating solution for critical connections between mated connector pairs. Offered in 10 keyed combinations, each with uniquely polarized key positions, each connector also includes one non-keyed (Universal) option. Rugged and durable 360° raised grounding ring Well-matched impedance Excellent repeatability The industry’s lowest VSWR, insertion loss and RF leakage Gender Male Frequency (GHz) 18 Style Direct Solder Cable Center Diameter 0.0362 Cable .141 Key Polarization J H (Deg) 93° G (Deg) 160° Features & Benefits: Center conductor of the cable launches into the rear female socket of the connector Inspection hole on the outer conductor Built-in stress relief accommodates cable center conductor movement More consistent electrical performance by eliminating the solder variable on the center conductor Inspection hole insures proper insertion of the cable center conductor
