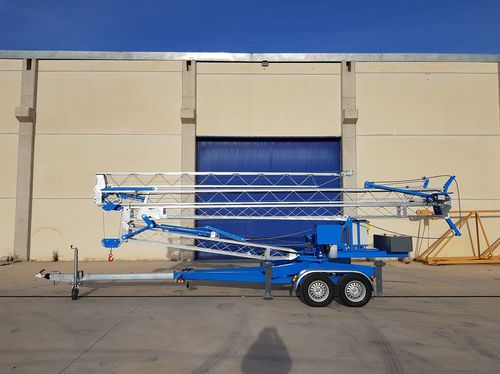

Self-erecting crane MiDi

mobilebuildingmaintenance

SELF-ERECTING CRANES - MiDi • - Our LT range combines performance and capacity in a compact crane that makes it easy to position the crane in areas of limited accessibility • - 10m to 14m length horizontally and up to 20.3 with an inclined JiB • - Up to 1500Kg maximum load • - Configurable with traditional mechanical system of relays or by means of a PLC with a touch screen that facilitates crane adjustment and configuration • - Electric enclosure with 3 variators, can be used with 230V or 400V power supply • - Safety mechanisms and sensors for safe handling of your loads • - Hydraulic assembly of JiB and column • - Optional radio remote control with buttons or joystick • - Designed so that the travelling assembly does not exceed 3500Kg in its approved RD-Road configuration, to allow it to be transported on conventional roads by means of a light vehicle (permit B+E) of MMR< 3500Kg • - Depending on the model, there is the XP-EXPRESSoption, where all the counterweights (assembly and work) are included in the crane, so no additional transport of counterweights is required • - Easy assembly in just 12 minutes by one person. Depending on the configuration, it does not require any additional means • - Choice of metal or concrete counterweights • - It is the perfect crane for the small and medium-sized builder, in building work, maintenance, repairs, extensions and improvements, in projects at low heights or with difficult access
