LED floodlight / weather-proof / IP66 / outdoor
Titan 420

Add to MyDirectIndustry favorites
Compare this product

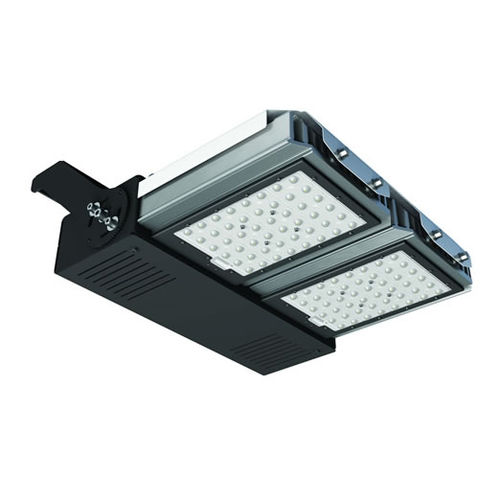

LED floodlight / weather-proof / IP66 / outdoor LED floodlight / weather-proof / IP66 / outdoor - Titan 420
{{requestButtons}}

Characteristics

  • Illumination technology:

    LED

  • Protection level:

    weather-proof, IP66

  • Other characteristics:

    outdoor, stainless steel

  • Power:

    455 W

Description

Highly efficient LED floodlight designed specifically for high mast and large area lighting.
Electronic, LED control gear driving 96 LEDs at 1.5A with asymmetrical distribution.
IP67, Class I protection with 15kA Surge Protection.

Body: recyclable, extruded aluminium and powder-coated
steel.
Optic Enclosure: PMMA Weather-proof lenses.

Reversible mounting bracket supplied, optional spigot adaptors available separately for post-top mounting.

Manufactured to operate in harsh environmental conditions. Advanced thermal management properties and best in class components deliver performance without compromising on reliability.

Proprietary optic lens system delivers one of the highest asymmetric distributions in the market.

Technical data

> Performance
Nominal Flux: 53,328 lm
Net Flux: 49,595 lm
Power Absorption: 455 W

> Optoelectronics
LED Type: CREE XP-G3
Circuit Board: MPCB 1.6 mm
CRI: 70 < R < 90
Luminous Eff Loss: 100,000h

> Electronics
Voltage input range: 90-305 VAC 50-60Hz
Power Factor: 0.95
Mean time to Failure: 200,000 hrs
Dimming Function: 1-10V / DALI
Surge Protection: 15kA, IEEE C62.41.2
Location Category C High
Insulation Class: IEC Class 1
IP Rating: IP 67
