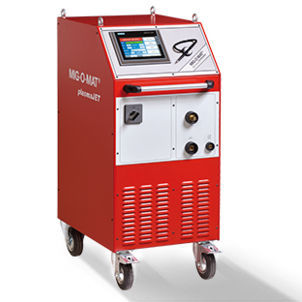

Plasma welder plasmaJET 350SPS-K

three-phasefor steelfor stainless steel

MIG·O·MAT offers customized solutions for automated plasma keyhole welding applications to meet the high requirements in productivity and quality increase. Scope of Plasma Keyhole Welding The plasma keyhole welding is applied in case of a sheet thickness of 2 to 10 mm. Typical applications are the longitudinal and circumferential one pass butt welding processes in case of thick-walled pipes, containers and bottoms. The advantages of the process are distinguished by high productivity and quality. • Welding of medium-sized sheet thickness of 2 to 10 mm • Root layer welding in case of higher sheet thickness • Stainless steel, Carbon steel, • High welding speed • Joint width ~0,1 × sheet thickness Contrary to other welding processes the plasma keyhole welding is characterised by a low heat input, an outstanding quality and a very low wear- and additional costs (e.g. auxiliary material). With the plasma keyhole technology it depends special apart from the experience particularly on an interaction of the assigned devices, a simple operation and on components co-ordinated for the procedure. For this MIG·O·MAT offers a control concept which can be served simply. The entire machine is controlled via a central 10" Touchpanel. The torch is in addition of crucial importance, there to these high requirements to be placed concerning service life and welding quality. Here MIG·O·MAT uses the PJB350, which apart from extremely long service lives an outstanding welding result. Due to the construction of the torch it gets along with only a few wear parts. The assigned camera system with adjustable brightness serves for the arc observation and for the weld guiding.
