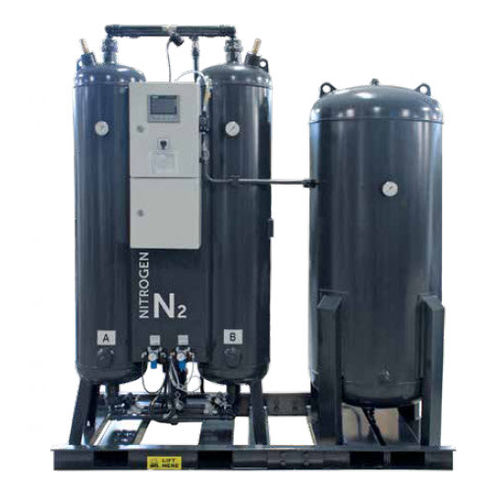

Pure nitrogen generator MNG series
industrialPSA

pure nitrogen generator
pure nitrogen generator
pure nitrogen generator
pure nitrogen generator
Add to favorites
Compare this product


Characteristics

Gas characteristics
pure
Domain
industrial
Technology
PSA
Flow rate

Max.: 5,740 m³/h (202,706.187 ft³/h)

Min.: 0.2 m³/h (7.063 ft³/h)

Output pressure

6 bar (87.02 psi)

Description

PSA NITROGEN GENERATOR Pressure Swing Adsorption (PSA) type Nitrogen Generation system that is used to separate and enrich Nitrogen from Oxygen employs CMS (Carbon Molecular Sieve) for adsorbent. Carbon Molecular Sieve (CMS) adsorbs Oxygen and Water Vapor molecules under certain pressure while allowing Nitrogen to pass through. The Nitrogen Generator is a Two-Bed Adsorber System The Nitrogen Generator consists of two adsorber vessels filled with CMS, a valve assembly, air filters, main pressure regulator, and a product receiver tank. Clean and dry air is directed to one of the adsorber beds where oxygen and water vapor is adsorbed faster than nitrogen in the pore structure of the CMS, thus increasing the nitrogen purity of the product gas stream to the desired level (95-99.999% as required by customer). This product flows out from the top of the adsorber bed, through the valve and into the product receiver at a pressure slightly below the feed air pressure. Applications - Metal industry - Chemical industry - Purge - Plastic industry - Charge nitrogen gas in tires - Production process and storage of food Optional - Oxygen Analyzer / Nitrogen purity sensor - Flow Meter - Dew Point Sensor (pic.3 see next page) Standard - Activated Carbon Tower - Compressed air filters (P grade) after carbon tower and after buffer tank - Nitrogen Generator / Silencer - Basic Logo or Crouzet mini PLC for modular type - Siemens HMI color touch screen PLC for twin towers - Buffer Tank
