Belt conveyor EAC
horizontalwith adjustable slopefor materials handling

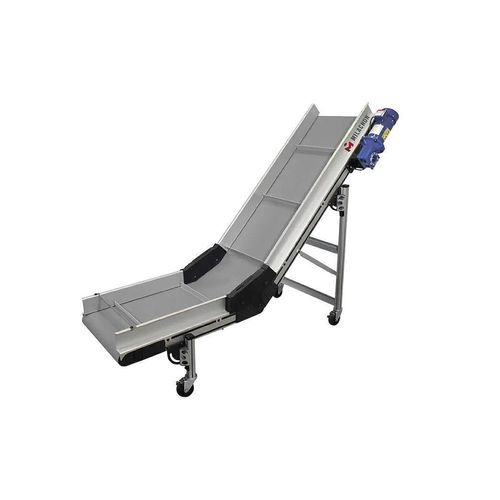

Belt conveyor - EAC - Milacron China - horizontal / with adjustable slope / for materials handling

Belt conveyor - EAC - Milacron China - horizontal / with adjustable slope / for materials handling - image - 2

Add to favorites

Compare this product

Characteristics

Technology

belt

Form

horizontal, with adjustable slope

Function

for materials handling, transfer

Construction

modular

Drive mechanism

motorized

Sector

for assembly lines, for packaging lines

Other characteristics

aluminium, variable speed, indexing, reversible

Effective width

Max.: 1,829 mm
(72 in)

Min.: 152 mm
(6 in)

Length

Max.: 10.1 m
(33'01" )

Min.: 0.9 m
(2'11" )

Description

Overview
Milacron conveyors are modular conveyor systems designed to automate product transfer between production stages. Standard construction uses an anodized extruded aluminum frame with 4 in (10.2 cm) side rails; optional steel frame variants are available for heavy-duty applications. Systems support integrations for robotic indexing and inline detection.

Key Features

Anodized extruded aluminum frame (steel frames optional)
4 in (10.2 cm) side rails standard
Variable speed drive for adjustable belt speeds
Robotic indexing capability
Reversing capability
Photo-eye sensors for part detection
Box filling system compatibility
Multiple fixed-angle and adjustable-angle configurations

Models & Configurations
Available models include EAF, EAC, EAK, EAR and EAZ, each addressing specific layout and handling requirements.

EAF: Flat belt with adjustable height
EAC: Fixed incline belt (Incline Belt Conveyor)
EAK: Adjustable-angle conveyor with variable incline
EAR: Adjustable decline conveyor
EAZ: Combined flat-to-incline/decline and return-to-flat sections

Belt Sizes & Capacity
Standard belt lengths range from 3 ft (0.9 m) to 33 ft (10.1 m); custom lengths available on request. Standard belt widths range from 6 in (15.2 cm) to 72 in (182.9 cm); larger systems can be engineered per project requirements.

Product Galleries / Visuals
Galleries show detailed views by model (side, top, front, close-ups) to illustrate configurations and components for specification and installation planning.

Available In

Africa
Asia/Pacific
Europe
North America
South America

Technical Specifications

Frame: Anodized extruded aluminum (optional steel frame for heavy duty)
Side rails: 4 in (10.2 cm) standard
Belt length (standard): 3 ft (0.9 m) to 33 ft (10.1 m); custom lengths available
Belt width (standard): 6 in (15.2 cm) to 72 in (182.9 cm); larger widths available on request
Drive: Variable speed drive
Capabilities: Robotic indexing, reversing, photo-eye detection, box filling systems
Model types: EAF (flat adjustable height), EAC (fixed incline), EAK (adjustable incline), EAR (adjustable decline), EAZ (flat-to-incline/decline + back-to-flat)
