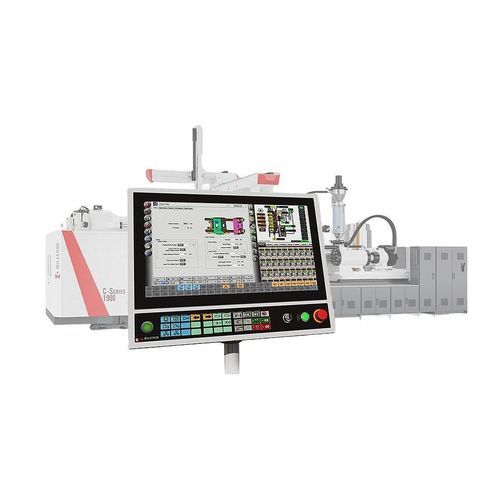

Multitouch screen HMI MOSAIC

panel-mountWindowsLAN

Overview Maximizing the reliability and adaptability of Milacron machines is effortless with the ergonomic touch-screen control of MOSAIC+. This advanced system offers fast processing speeds for extensive data collection and report generation, and integrates with automation controls to simplify operation. The MOSAIC+ screen enables operators to view multiple machine functions and related equipment simultaneously, including hot runner control and remote-mounted IP cameras.

Available In

• Africa
• Asia/Pacific
• Europe
• North America
• South America

Additional Info

• 8 + 8 freely configurable I/O ports for versatile applications
• Self-diagnostic and fault-finding capabilities for quick troubleshooting
• 8 SPC distribution, XBar, and R charts supporting over 50 parameters
• Data protection with four access levels supporting up to 30 machine operators
• Cores are fully configurable to allow tailored solutions

Features

• Multi-touch capable 21.5" HD touch screen with an intuitive, configurable interface
• Remote-mounted IP camera interface for real-time monitoring
• Windows-based system for seamless integration
• Set point overview page giving quick access to actual set points for each axis
• Save mold data and screenshots to USB keys; change log and alarm log store up to 700 entries with virtually unlimited storage on USB sticks or network drives
• 33 integrated soft keys with LED indicators
• Monitors over 50 parameters, displaying minimum, maximum, and average values graphically

About Milacron (excerpt) Milacron is a global leader in plastic processing solutions, partnering with customers throughout the lifecycle of equipment to support sustainability, training, and IIoT platforms to optimize processes and production.

Caractéristiques / spécifications techniques

• Product name: MOSAIC+ CONTROL
• Manufacturer: Milacron
• Display: 21.5" HD multi-touch screen
• Operating system: Windows-based
• I/O: 8 + 8 freely configurable I/O ports
• SPC: 8 SPC distribution charts plus XBar and R charts
• Parameters monitored: over 50 parameters with graphical min/max/avg
• Data protection: four access levels for up to 30 machine operators
• Logs: Change log and alarm log up to 700 entries (unlimited on external USB/network storage)
• Soft keys: 33 integrated soft keys with LED indicators
• Camera support: Remote-mounted IP camera interface
• Data export: Save mold data and screenshots to USB keys; network drive support
• Diagnostics: Built-in self-diagnostic and fault-finding capabilities
• Integration: Seamless integration with automation controls and related equipment (e.g., hot runner control)
• Customization: Fully configurable cores and configurable user interface
