Laser welder OptX™

solid wiresingle-phasefor steel

Description

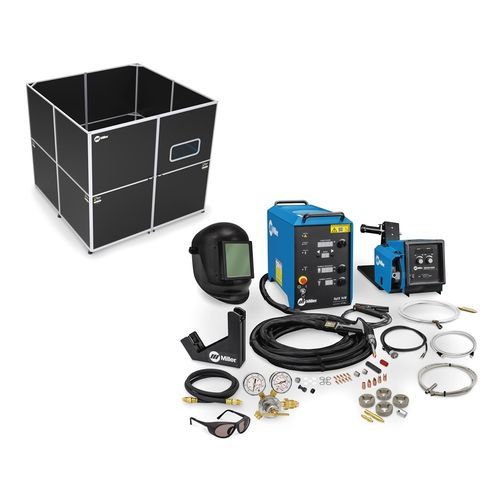

Complete OptX™ 1kW handheld laser welding package including power source, industrial wire feeder and an 8 ft × 8 ft Class 1 laser enclosure rated to 2,500 W/cm² for safe integration into production facilities.

Overview
The Miller OptX™ Handheld Laser Welder provides laser welding capability for sheet metal and assemblies up to 5/16" thickness, delivered as a ready-to-weld solution. The package is intended for fabrication shops requiring faster cycle times and reduced post-processing.

Features

• Welding speed up to four times faster than TIG on comparable joints, reducing cycle time and labor.
• Multiple welding modes: spot, autogenous and wire welding; includes a cleaning function for joint preparation.
• Industrial OptX™ wire feeder engineered for consistent feed in handheld laser applications.
• User interface with preconfigured parameters for common materials and thicknesses to simplify setup.
• Low heat input process that minimizes distortion when tight part fit-up is used.
• Class 1 enclosure rated to 2,500 W/cm² for safe operation in production environments.

Product Literature & Resources (listed on product page)
Spec sheet, parameter charts, error code and safety documents, tri-fold brochure and customer literature available for the OptX™ 1kW handheld laser welder.

Table - Key product information
Title: Ready-to-Weld OptX™ 1kW with 8ft x 8ft Laser Enclosure
Laser Input Power: 240 V
Laser Input Phase: Single-phase
Laser Output Power: 1000 W
Laser Wavelength: 1070 nm
Torch Length: 30 ft
Feed Conduit Length: 10 ft
Wire Feed Speed: 5 IPM - 80 IPM
Wire Feed Input Power: 120 V
Wire Diameter: Aluminum 0.035 in. - 0.047 in.; Solid Steel 0.035 in. - 0.045 in.
Enclosure Rating: Rated up to 2,500 W/cm² (Class 1 enclosure)
Warranty: Miller's True Blue Warranty

Accessories (examples shown)

• OptX™ Cart — cart for power source, wire feeder and gas cylinders; storage for accessories and PPE.
• OptX™ Focus Lens Installation Tool — for safe installation of focus lens assembly.
• OptX™ Nozzle Protective Cap — vinyl cap to protect torch nozzle when idle.
• OptX™ Torch Cradle — magnetic cradle to secure OptX torch head.

Consumables (examples shown)

• OptX™ Liner for 0.047 in. Aluminum, 11 ft (3.4 m) — Teflon liner to reduce wire drag.
• OptX™ Liner for 0.045 in. Steel, 11 ft (3.4 m) — monocoil liner for extended service life.
• OptX™ Welding Nozzle Kit, 5-pack — set of nozzle styles for various joint types.
• Contact Tip 0.045 - 0.047 (1.2 mm) — compatible with OptX™ torch.
• OptX™ Protective Window — protects laser optics from spatter and debris.

Technical specifications

• Title: Ready-to-Weld OptX™ 1kW with 8ft x 8ft Laser Enclosure
• Laser Input Power: 240 V
• Laser Input Phase: Single-phase
• Laser Output Power: 1000 W
• Laser Wavelength: 1070 nm
• Torch Length: 30 ft
• Feed Conduit Length: 10 ft
• Wire Feed Speed: 5 IPM - 80 IPM
• Wire Feed Input Power: 120 V
• Wire Diameter: Aluminum 0.035 in. - 0.047 in.; Solid Steel 0.035 in. - 0.045 in.
• Enclosure Rating: Rated up to 2,500 W/cm² (Class 1 enclosure)
• Warranty: Miller's True Blue Warranty
