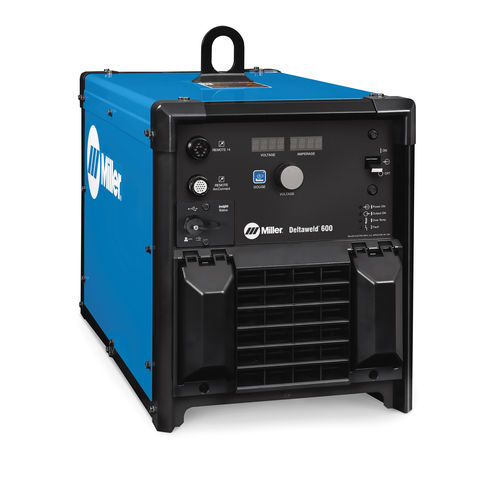

MIG-MAG welder Deltaweld® 600three-phaseDCfor steel
Add to favorites
Compare this product
Characteristics
- Technique
- MIG-MAG
- Power supply
- three-phase
- Output current
- DC
- Material
- for steel, for stainless steel, for aluminum, for bronze
Description
Overview
The Deltaweld® 600 is an industrial DC welding power source delivering 600 A at 100% duty cycle for advanced fabrication and heavy-equipment applications. It supports 575 V, 3-phase input and offers both modern ArcConnect™ feeder communication and legacy 14-pin compatibility to integrate with existing wire feeders.
Key features
Processes
Technologies
Specifications
The Deltaweld® 600 is an industrial DC welding power source delivering 600 A at 100% duty cycle for advanced fabrication and heavy-equipment applications. It supports 575 V, 3-phase input and offers both modern ArcConnect™ feeder communication and legacy 14-pin compatibility to integrate with existing wire feeders.
Key features
- Dedicated feeder options: Intellx Elite with arc control; Intellx Pro adding Accu-Pulse®, EZ-Set, steel-weld programs and memory buttons.
- EZ-Set simplifies parameter setup by material thickness to reduce operator training time.
- Pulsed MIG capable with Intellx Pro/Elite for a 28% wider operating window and improved arc stability across operator skill levels.
- ArcConnect™ enables next-generation feeder communication and point-of-use control at the feeder.
- Backwards compatibility with standard Miller 14-pin for use with older wirefeeders.
- Insight Centerpoint Basic available on select models to monitor operation and generate reports.
- Fan-On-Demand™ cooling reduces noise, energy use and ingress of contaminants.
- Wind Tunnel Technology™ internal airflow protects components from dirt and debris to improve reliability.
Processes
- Air Carbon Arc Cutting and Gouging (CAC-A)
- Flux Cored (FCAW)
- Metal Cored (MCAW)
- MIG (GMAW)
- Pulsed MIG (GMAW-P)
- Regulated Metal Deposition (RMD)
Technologies
- Accu-Pulse
- Advanced Welding Processes
- HD MIG
- Insight
- RMD
- Versa-Pulse
- Wind Tunnel Technology
Specifications
- Model: Deltaweld® 600 (product family Deltaweld)
- Rated output: 600 A at 100% duty cycle (DC)
- Input: 575 V, 3-phase, 60 Hz
- Wire feed speed: 50–780 IPM
- Rated carbon diameter: up to 3/8 in (9.5 mm)
- Portability: lift eye (standard); running gear/cart (optional)
- Cooling: Fan-On-Demand™
- Protection: Wind Tunnel Technology™ internal airflow
- Control/connectivity: ArcConnect™ communication and 14-pin compatibility
- Available feeders: Intellx Pro / Intellx Elite (Accu-Pulse®, EZ-Set, memory buttons, arc control)
- Net dimensions (W×H×L): 15.35 in × 22.34 in × 31.65 in
- Net weight: 145 lbs
Catalogs
No catalogs are available for this product.
