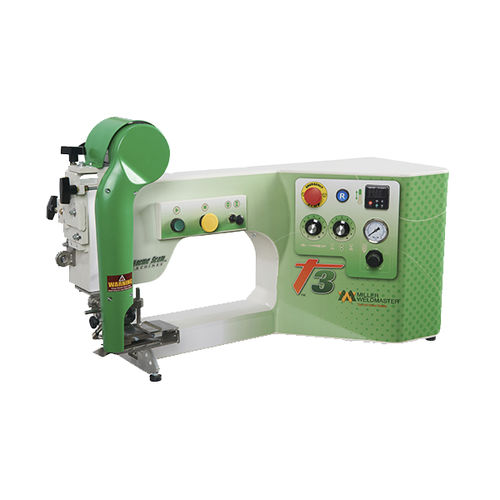

Small, Efficient
WEDGE WELDER
The T3 Extreme™ was designed with the smaller business in mind.
This efficient hot wedge welder will produce all the seams required for the banner and sign maker. The T3 Extreme is equipped with nearly all of the guides you need to finish almost any job your customer
may require. Designed to easily adapt to any small business, the T3 Extreme will use a limited amount of space to finish your products.
Hot Wedge Welding Applications:
•Woven Polypropylene
•Woven Polyethylene
•PVC Laminate
•PVC Coated
•Polyurethane Coated
•Polypropylene
•More...
Technical Specification
Voltage:
230 Volts -Single Phase - 15 Amp.
Air Requirements:
1cfm @ 100psi
Power Consumption:
Approx. 3.5kW
Maximum Temperature:
430°C (806°F)
Throat Width:
0.406m (16”)
Dimensions:
Width: 0.406m (16”)
Length: 1.2m (47”)
Height: 0.533m (21”)
Weight:
48kg (105lb)
Seam Width:
10-50mm (0.5-2”)**
Welding Cycle:
Up to 8m per minute*
Features and Benefits
1. Simple controls for easy operation.
2. Solid steel frame for years of durability.
3. Compact size for any small business.
4. Simple wedge adjustments for accurate placement.
5. Easy guide change for multiple seam configurations.
