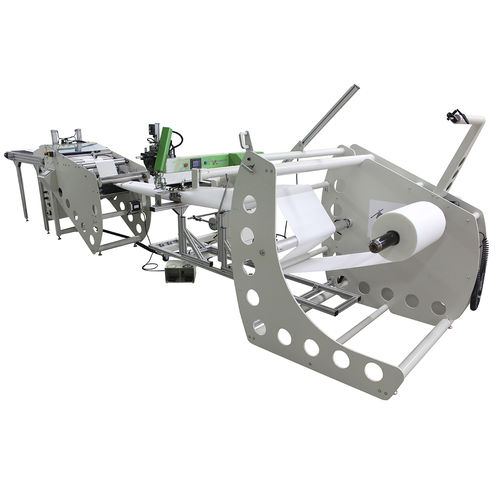

Laser welding machine T300 Extreme Filter

wedgehot airautomatic

T300 Extreme Filter System AUTOMATED filter tube production Configured for almost any size, diameter filtered to and cut to length needs. Unwind, weld and cut filter tubes automatically with precision controlled parameters Features and Benefits Quick- setting recall with touch screen and recipe storage Tightly secures fabrics with air shaft Easily handles multiple diameter tubes with laser and adjustable tubing guides Reduced material handling with fabric tension-control unwinding Automatic fabric tension control loads fabric for precise product placement Adjustable tube forming guide with overlap and pre-folding assembly Smooth operation provided by fabric accumulator Encoder measures product to length Consistent cuts with automatic guillotine cutting system Technical Specs Power Requirements 208-240 Volts - Single Phase -25 Amperes 380-400 Volts - Single Phase - 16 Amperes Air Requirements 100 PSI @ 8 CFM Power Consumptions 6Kw Maximum Temperature Hot Air: 750°C Hot Wedge: 450°C Seam Width 10 to 50mm (1/2” to 2”)** Welding Cycle Up to 30M/min (100ft/min)*
