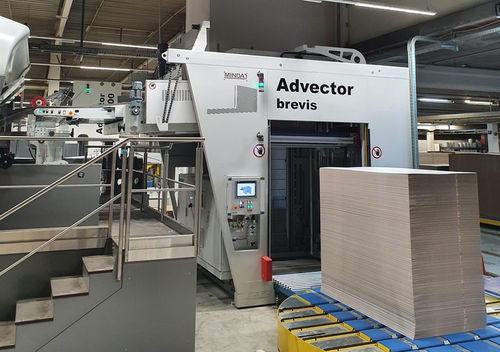

Pneumatic feeder ADVECTORbrevis
cartonconveyorsheet

pneumatic feeder
pneumatic feeder
Add to favorites
Compare this product


Characteristics

Type
pneumatic
Product applications
conveyor, carton, sheet

Description

In contrast to the conventional ADVECTOR, the lifting process is carried out by the infeed conveyor and the packages are pushed directly in front of the shingling gate. Thus, we could save another 1.5 m in length. Combined with the lateral infeed, the material buffer may be realized near the ADVECTORbrevis. The machine operators can carry out a final quality check - through perfect intervisibility - before the sheets are processed. Other advantages of the ADVECTOR series have also been integrated in the ADVECTORbrevis, such as endless shingling sheet flow, continuous rubber-covered chain, exclusively pneumatic or electric drives, HMI touch panel, etc. In addition, there is a free choice of residual sheet discharge, either in the direction of machine passage or laterally. The ADVECTORbrevis is available for all flat-bed die-cutter combinations, with or without printing units. The sophisticated design also enables us to supply our customers with the ADVECTORbrevis as a complete assembly group, eliminating time-consuming efforts for on-site installations. Advantages • Short installation length by lateral infeed and discharge directly in front of the shingling gate • Continuous shingling sheet flow even during stack changes without downtimes • Easy handling for operators thanks to modern HMI touch panel • Short machine set-up time by storing the order data • Clean production and feeding area by complete elimination of hydraulics • No assembly work on site, as delivery as a complete assembly group Special features • Telescopic transfer table adjustable to converting machine • Residual sheet discharge in throughfeed direction or laterally
