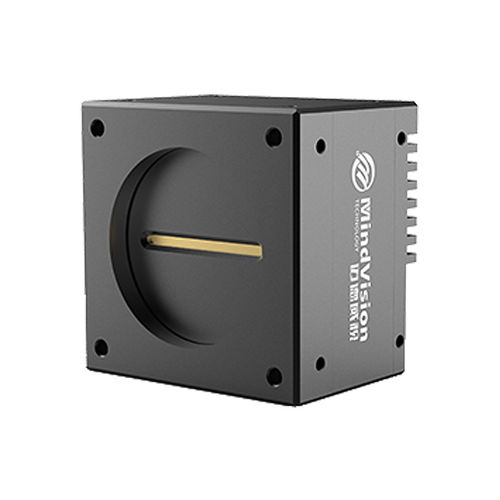

Industrial camera MV-GELM44C

digitalline-scanmachine vision

MV-GELM44C/M is an industrial linear array camera independentlydeveloped by Mindvision, meeting the needs of the large formatinspection and high speed pipeline inspection in industrial production.Using domestic chips,GigE interface,4K resolution, up to 27.5KHz linefrequency greatly improve the efficiency and testing accuracy in theindustry detection field.Intergrated multiple ISP image algorithmsandfunctions, Support line trigger, frame trigger and other external triggermode; Supported MV-GELM44C/M is a smaller, more cost-effectiveproducts. Medical industry detection, photovoltaic panel detection, flat panel display detection,PCB printing detection, metal surface detection, plastic detection, paper and fiberdetection, etc. • Line frequency up to 27.5K, software free setting. • Hardware ISP supports gamma, contrast, lens shadow correction,etc. • Support Fractional frequency and frequency multiplication of encoder signals, matching motion platform accuracy. • Support hardware SUM mode to improve the brightness and reduce the requirements of the light source. • It supports multiple trigger modes such as encoder synchronization trigger, photoelectric sensor and encoder combination synchronization trigger. • The hardware supports automatic concatenation of pixel ROl in horizontal direction and arbitrary rows in vertical direction (up to specified limits).
