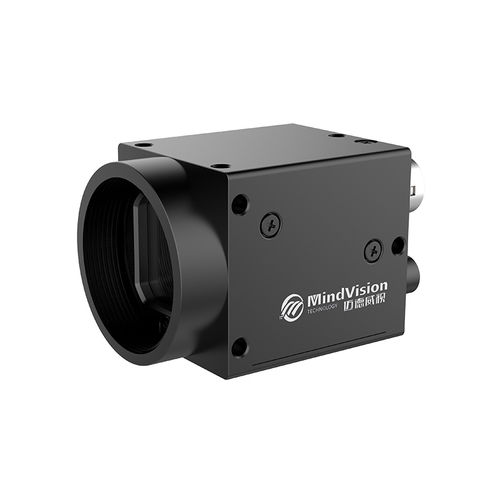

Inspection camera MV-SUA135GM

area scanindustrialmachine vision

The transmission speed of USB3.0 is significantly higher than USB2.0and GigE cameras. With 5Gbps transmission bandwidth and high-speedsensor, the camera of 0.3MP and 800 fps can achieve a minimumtransmission time of 1.2 ms, and a 20MP pixel camera can also reach18fps; Due to the abundant transmission bandwidth, a computer iscompatible with multiple camera operation, meanwhile, high frame ratecan be guaranteed; The USB 3.0 series has a low CPU utilization, adoptingDMA transmission, and the 5Gbps data tranmission hardly occupies CPUresources. It is widely used in electronic 3C, automatic semiconductor, logistics codescanning, intelligent transportation, biomedicine, package printing, etc. • The camera comes with programmable I0. • Support external trigger strobe to take photos synchronously. • Support 8bit to 12bit raw data output. • Fully compatible with GIGE camera's SDK for seamless replacement. • Multiple cameras on one computer can work stably without dropping or losing frames for a long time. • Support PC Linux system and ARM Linux system, available to be integrated into embedded devices. • Compatible with Vision protocol, seamlessly compatible with Halcon, VisionPro, Labview and other vision software.
