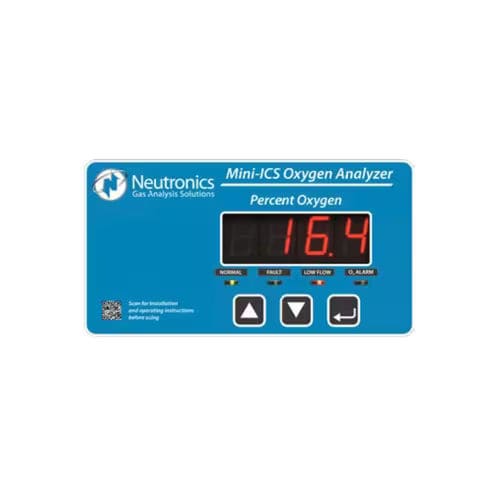

Oxygen analyzer Mini-ICS

processconcentrationcompact

The Mini-ICS (Inert Gas Control System) is a compact series analyzer designed for continuous real-time oxygen monitoring and concentration control of nitrogen or inert gas. When combined with a properly designed sample conditioning package, the Mini-ICS provides reliable measurement of oxygen levels over a wide range of conditions and automatically maintains oxygen levels within specified limits through precise control of the ­ow of inert gas into the process. Inert gas blanketing protects plant personnel, products, and plant assets by reducing the oxygen content in the vapor space of a tank or process vessel. Making the vapor space inert eliminates the possibility of ‑re or explosion, decreases evaporation, and protects the vessel from structural corrosion damage. Tank blanketing also prevents air, moisture, or other contaminants from entering the vapor space and causing product quality degradation. Compact design for continuous real-time monitoring and control User-adjustable alarm and inert gas control with relay outputs Low ­ow indicator for process gas sampling applications Remote calibration relay output for “one man” calibration Two analog outputs – 4-20mA and 0-1, 0-5, or 0-10VDC Specifications Accuracy ±2.0% of full scale Analog Communication Serial RS-232 service portAnalog 0-1, 0-5,0-10 VDCand 0-20, 4-20 mA Enclosure Rating Faceplate: NEMA 4 (IP66)Chasis: Nema 1, IP20 Measuring Range 0-1, 0-10, 0-25, 0-50% oxygen. Fixed or auto Product Dimensions (L×W×H) Faceplate: 7." × 3.75" (17.78 × 9.52 cm)Chasis: 5.98" x 2.81" x 3.60"
