Worm gear-motor PCF series
three-phaseasynchronousright angle

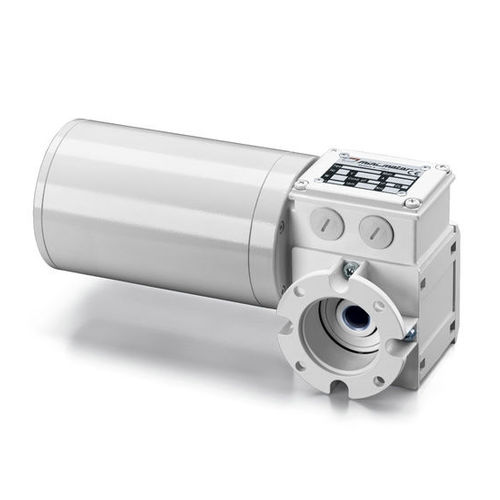

Worm gear-motor - PCF series - Mini Motor SPA - three-phase / asynchronous / right angle
Worm gear-motor - PCF series - Mini Motor SPA - three-phase / asynchronous / right angle
Worm gear-motor - PCF series - Mini Motor SPA - three-phase / asynchronous / right angle - image - 2
Worm gear-motor - PCF series - Mini Motor SPA - three-phase / asynchronous / right angle - image - 3
Worm gear-motor - PCF series - Mini Motor SPA - three-phase / asynchronous / right angle - image - 4
Worm gear-motor - PCF series - Mini Motor SPA - three-phase / asynchronous / right angle - image - 5
Worm gear-motor - PCF series - Mini Motor SPA - three-phase / asynchronous / right angle - image - 6
Worm gear-motor - PCF series - Mini Motor SPA - three-phase / asynchronous / right angle - image - 7
Worm gear-motor - PCF series - Mini Motor SPA - three-phase / asynchronous / right angle - image - 8
Add to favorites
Compare this product
Go to the Mini Motor SPA website for more information

Characteristics

Motor type
three-phase, asynchronous
Type
worm
Shaft orientation
right angle
Shaft configuration
hollow-shaft
Power
100 W...500 W
Voltage
400 V, 380 V
Torque
1 - 5 Nm, 5 - 10 Nm, 10 - 20 Nm
Product applications
for the food industry, for hygienic applications
Other characteristics
aluminum frame
Gear ratio

Max.: 100 unit

Min.: 5 unit

Rotational speed

Max.: 560 rpm
(3,518.5838 rad.min-1)

Min.: 28 rpm
(175.9292 rad.min-1)

Description

MOTOR: Asynchronous three-phase motor with 2 poles, totally enclosed. Thermal safety feature. Class F winding in accordance with CEI EN 60034-1. IP67 standard protection in accordance with CEI EN 60529. GEAR UNIT: With die-cast aluminium casing. Wheelbase from 32 mm. Wheel rim in special bronze 120/160 HB hardness. Worm gear in hardened steel with grinding thread rotating on ball and roller bearings, output shaft in stainless steel on request. Lubrication with special long-lasting oil. Sealing rings made in special white rubber for high temperatures. Rated torque from 2 to 20 Nm. Version B3 or B5. B5/S left version – B5/D right version. White epoxy protective coating. ALWAYS specify application environments. CUSTOMIZED PRODUCT ON REQUEST.
