Worm gear-motor MCC series
DCpermanent magnetplanetary

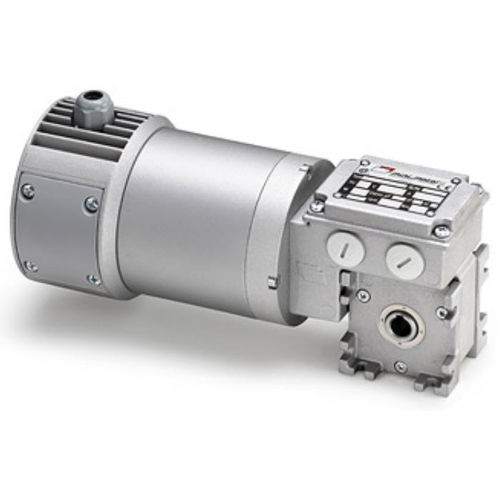

Worm gear-motor - MCC series - Mini Motor SPA - DC / permanent magnet / planetary
Worm gear-motor - MCC series - Mini Motor SPA - DC / permanent magnet / planetary
Worm gear-motor - MCC series - Mini Motor SPA - DC / permanent magnet / planetary - image - 2
Worm gear-motor - MCC series - Mini Motor SPA - DC / permanent magnet / planetary - image - 3
Worm gear-motor - MCC series - Mini Motor SPA - DC / permanent magnet / planetary - image - 4
Worm gear-motor - MCC series - Mini Motor SPA - DC / permanent magnet / planetary - image - 5
Worm gear-motor - MCC series - Mini Motor SPA - DC / permanent magnet / planetary - image - 6
Worm gear-motor - MCC series - Mini Motor SPA - DC / permanent magnet / planetary - image - 7
Add to favorites
Compare this product
Go to the Mini Motor SPA website for more information

Characteristics

Motor type
DC, permanent magnet
Type
planetary, worm
Shaft orientation
right angle
Shaft configuration
hollow-shaft
Power
100 W...500 W, 10 W...50 W, 50 W...100 W
Voltage
24 V
Torque
1 - 5 Nm, 5 - 10 Nm, 0.2 - 0.5 Nm, 0.5 - 1 Nm, 0 - 0.1 Nm, 0.1 - 0.2 Nm
Other characteristics
IP65, aluminum frame
Gear ratio

Min.: 5 unit

Max.: 80 unit

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 60 °C
(140 °F)

Rotational speed

2,800 rpm
(17,592.9189 rad.min-1)

Description

MP MOTOR: direct current with permanent magnets, totally enclosed, with external ventilation. Class F winding. 24 Vdc power supply. Absorbed power 60 W. IP 65 protection according to CEI EN 60529. MP3N-MP4N MOTOR: direct current with permanent magnets, totally enclosed without external ventilation. Class F insulation. 12 or 24 Vdc power supply. Absorbed power 230 W. IP65 protection according to CEI EN 60529. GEAR UNIT: with die-cast aluminium casing. Centre distance 26 mm. CARO bronze ring, 120÷160 HB hardness. Hardened steel screw with ground thread rotating on ball and roller bearings. Lubrication with special long life oil. Sealing rings made in special rubber for high temperatures. 10 gear ratios (i) available, from 5 to 80. Rated torque 9 Nm. Version B3 or B5. B5/S left version – B5/D right version.
