Oscillating mini booster HC4
oil

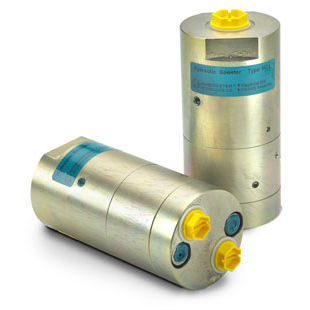

oscillating mini booster
oscillating mini booster
Add to favorites
Compare this product


Characteristics

Technology
oscillating
Media
oil
Pressure

Min.: 20 bar
(290 psi)

Max.: 207 bar
(3,002 psi)

Description

Description The HC4 is ideal for use in applications where a higher volume of high-pressure fluid is required. The HC4 is a compact unit weighing only 3.7 kg, but it delivers up to 7.0 liters/min. outlet flow. Like the HC2, it raises supplied pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. Functions The basic operation is illustrated in the function diagram. Oil is fed through the directional valve CV to the IN port, flowing freely through the check valves KV1, KV2 and DV to the high-pressure side H. In this condition maximum flow through the booster is achieved giving a fast-forward function. When pump pressure is reached on the high-pressure side H, valves KV1, KV2 and DV will close. The end pressure will be achieved by the oscillating pump unit OP. The unit will automatically stall when end pressure on the high-pressure side H is reached. If a pressure drop on the high-pressure side exists due to consumption or leakage, the OP valve will automatically operate to maintain the end pressure.
