Profile assembly bolt connector 21.1024/0

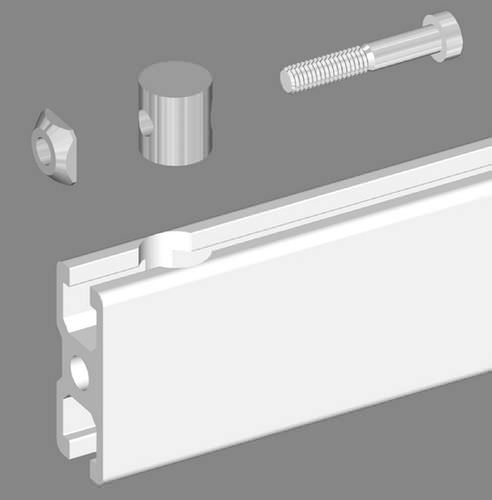

Techn. Data / Items supplied • - Aluminium, anodized E6/EV1 • - With fastening material steel, zinc plated • - Weight = 0.032 kg/piece Applications • - Connection of profiles 19 and 32 • - Especially for post-mounting of additional profiles in existing constructions Assembly • - Insert the stepped bore Ø 9 x 15, 16 mm deep, positioned 22.5 mm from the end of the profile to the center of the groove • - Insert the connector and pre-tighten the screw with the ball head wrench SW 4 • - Fastening with Allen wrench • - Recommended locking torque: 15 Nm
