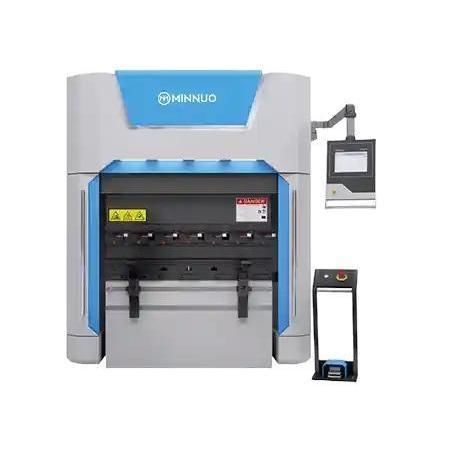

Servo-electric press brake EP-35T1250

CNC2-axishigh-speed

Overview
The EP-35T1250 is a compact, fully electric servo press brake engineered for precision sheet-metal bending in industrial production. With a 35-ton bending capacity, 1250 mm working length and a 6.5 kW Y-axis servo motor, the machine delivers repeatable, low-noise operation and improved energy efficiency compared with hydraulic systems.

Key Product Details

• Bending Capacity: 35T
• Y-axis Servo Motor: 6.5 kW
• Bending Length: 1250 mm
• Column Pitch: 1130 mm

Highlights / Key Features

• Fully electric drive (no hydraulic oil): lower maintenance risk and no leakage issues.
• Precision servo-controlled Y-axis: programmable multi-step bending for accuracy and repeatability.
• Compact footprint: optimized for space-constrained workshops and production cells.
• High-speed bending with low noise (≤70 dB): suitable for indoor manufacturing environments.
• CNC control compatibility: supports Delem, ESA or KND systems for multi-axis programming.

Recommended Configurations

• Multi-axis CNC back gauge (X, R) for complex part positioning.
• Quick clamp tooling system to reduce die change time.
• Laser angle measurement for real-time bend correction.
• Linear front support arms for long or thin parts.
• Foot pedal with emergency stop for operator safety and workflow control.

Application Case

• Client: Electrical enclosure manufacturer (Southeast Asia)
• Workpiece: 1.5 mm powder-coated steel panels for industrial switchboards
• Setup: EP-35T1250 + Delem DA-53T + X/R-axis back gauge
• Results: bending angle accuracy ±0.3°, cycle time ~10 s/part, energy consumption reduced ~58% vs hydraulic press, noise < 70 dB, production downtime decreased by 35%

Product Specifications

• Model: EP-35T1250
• Bending Capacity: 35 T
• Y-axis Servo Motor: 6.5 kW
• Bending Length: 1250 mm
• Column Pitch: 1130 mm
• Throat Depth: 410 mm
• Daylight (max): 470 mm
• Controller: SL100-P4/6 (compatible with Delem/ESA/KND)
• Installed Capacity: 15 kVA
• Dimensions (L×W×H): 1475 × 1358 × 2439 mm
• Weight: 3000 kg
• Also available: EP-43T2000 (43T, 2000 mm, 7.5 kW); EP-65T2500 (65T, 2500 mm, 15 kW)

Technical specifications

• Bending Capacity: 35 T
• Bending Length: 1250 mm
• Y-axis Servo Motor Power: 6.5 kW
• Column Pitch: 1130 mm
• Throat Depth: 410 mm
• Daylight (max): 470 mm
• Y Stroke: 200 mm
• X Stroke: 500 mm
• Controller: SL100-P4/6 (Delem/ESA/KND compatible)
• Installed Capacity: 15 kVA
• Machine Dimensions (L×W×H): 1475 × 1358 × 2439 mm
• Machine Weight: 3000 kg
