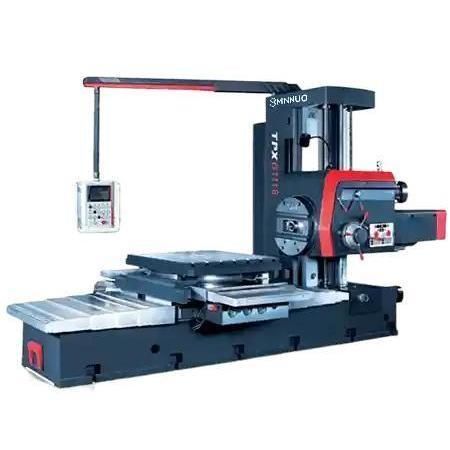

Horizontal boring machine TPX6111B/2

column type3-axis4-axis

Product Name
Single-column coordinate jig boring machine TPX6111B/2

Overview
The TPX6111B/2 is a single-column digital coordinate jig boring machine engineered for precision boring and coordinate hole processing. It incorporates a φ110 mm boring shaft, maximum spindle torque of 1225 N·m and a rigid worktable (1100×960 mm) rated for up to 2500 kg, enabling repetitive multi-position drilling, countersinking, flat-surface milling and other coordinate-based operations.

Key Details

• Boring shaft diameter: 110 mm
• Max. spindle torque: 1225 N·m
• Table size: 1100×960 mm
• Max. table load: 2500 kg

Key Features

• φ110 mm boring shaft, high torque (1225 N·m): Suitable for deep-hole boring and large-diameter finishing with consistent torque.
• Digital positioning (DRO-compatible): Ensures coordinate accuracy for complex part layouts and multi-feature components.
• Heavy-duty table (1100×960 mm, 2.5 t): Accepts medium-to-heavy assemblies such as housings, jigs and fixtures.
• Flexible machining modes: Boring, milling, spot-facing, drilling and threading.
• Rigid column and feed system: Maintains stability and geometric precision during long machining cycles.

Recommended Configurations

• DRO system (3- or 4-axis): For accurate coordinate boring and re-boring alignment.
• Facing head attachment: For face machining of flanges and stepped shoulders.
• Right-angle milling head: For side ports and non-axial machining.
• Tool presetter / probe kit: Speeds setup and ensures bore depth and position accuracy.
• Extended boring bar set: For deep pockets and high aspect-ratio holes.

Application Case

• Client: Industrial gearbox repair (example).
• Use case: Coordinate boring of bolt holes and dowel-pin seats in gearbox casings.
• Setup: TPX6111B/2 with DRO and right-angle head for side ports (example).
• Reported results: Bore alignment deviation ≤ ±0.02 mm; surface finish Ra 1.6 µm.

Technical specifications

• Boring shaft diameter: 110 mm
• Spindle taper: Morse No.6 (optional ISO 7:24 No.50)
• Max. spindle torque: 1225 N·m
• Max. flat disk torque: 1960 N·m
• Max. spindle axial force: 12,250 N
• Spindle speed range: 8–1000 r/min (up to 8–1100 for some variants)
• Table size (TPX6111B/2): 1100×960 mm
• Max. table load: 2500 kg
• Table travels (vertical × lateral): 1000 mm × 1250 mm
• Main motor power: 7.5 kW
• Machine weight (TPX6111B/2): 14,500 kg
