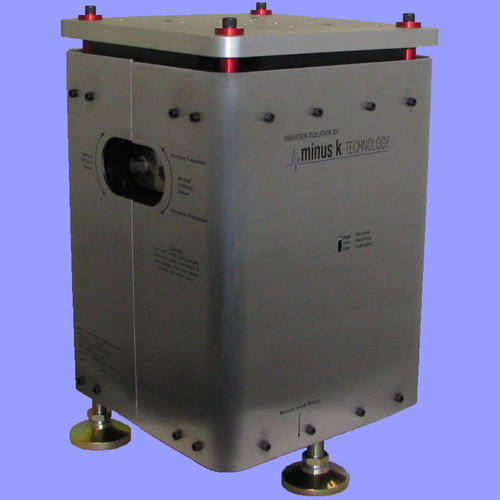

Low-frequency vibration isolation table SM-1

large capacity

Low frequency vibration isolator for weight loads from 500 to 4200 lbs. and 1/2 Hz performance vertical and horizontal. The SM-1 negative-stiffness isolator is the basic building block of the FP-1 Floor Platform and other heavy multiple isolator systems. They require no air or electricity. This isolator has the same basic features of our all passive, negative-stiffness, manually-adjustable bench top isolators. It offers our very-low frequency isolation performance for payloads of many thousands of pounds. The SM-1 isolator can be used alone or with any number of additional units to achieve higher capacity systems. They can be arranged in many geometrical configurations to suit your application. If there is a need, the isolators can be customized to achieve user specific needs. Eg., different horizontal and vertical frequencies, dampening, etc. They can also be made cleanroom and vacuum capatible.
