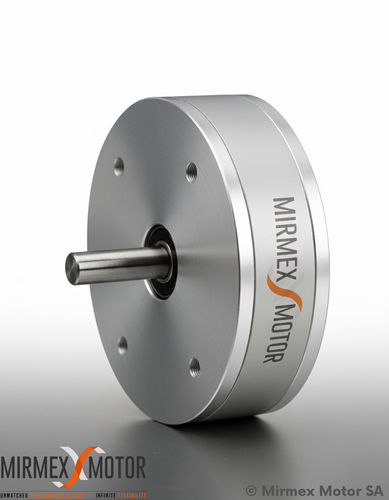

Flat motor three-phaseBLDC12 V
Add to favorites
Compare this product
Characteristics
- Type
- three-phase, BLDC
- Voltage
- 24 V, 12 V, 48 V, 36 V
- Configuration
- permanent magnet, coreless, slotless, compact, micro, flat, frameless, lightweight
- Protection class
- IP55, IP54, IP65
- Number of poles
- multipole
- Cooling mechanism
- air-cooled
- Applications
- for machine tools, industrial, for robotics, for collaborative robots, packaging machine, for medical applications, for the pharmaceutical industry, for the food industry, for hydraulic applications, for the semiconductor industry, for rotary tables
- Other characteristics
- custom, low-voltage, smallest brushless motor, axial flux electric motor, for actuators, axial motor, with brushless DC motor, winding motor, high-efficiency, high-torque, precision, microturbine motor, micromotor manufacturer, high-precision, low-speed, direct-drive, motor design, radial flux, low cogging, for robotics, for axial flux motor, axial flux motor manufacturers, defense motor, Frameless Axial Motor, stator micromotor, for micro motor, for small motors, Axial Flux Generator, axial flux
- Power
Min.: 0 kW
(0 hp)Max.: 3 kW
(4.08 hp)- Torque
Min.: 0 Nm
(0 ft.lb)Max.: 2 Nm
(1.475124 ft.lb)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 50,000 rpm
(314,159.2654 rad.min-1)- Diameter
Min.: 12 mm
(0.47 in)Max.: 300 mm
(11.81 in)
Description
Axial Flux Motors – High Torque, Ultra-Compact, Fully Customizable
Mirmex axial flux motors are engineered for applications demanding high torque density, compact form factors, and exceptional efficiency. These BLDC motors operate at 24 V or 48 V, delivering up to 3 kW of power and 2 Nm of torque, all within a highly customizable diameter range of 12 mm to 300 mm.
Thanks to our patented winding technology and axial flux architecture, these motors offer short axial lengths, low inertia, and excellent thermal performance, making them ideal for robotics, medical devices, aerospace systems, and high-performance industrial applications.
Key Specifications:
Torque: 0 to 2 Nm
Power: 0 to 3 kW
Voltage: 24 V / 48 V
Diameter: 12 mm to 300 mm
Speed: 0 to 50,000 rpm
