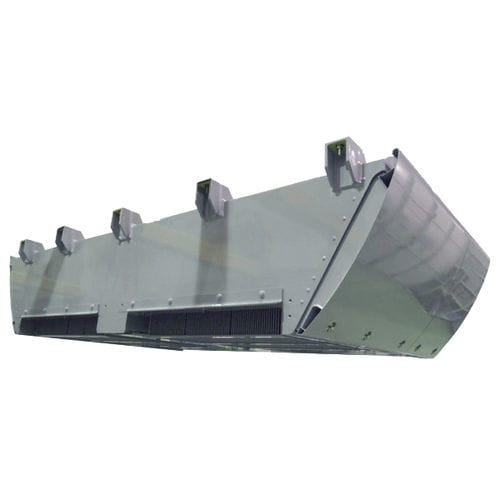

Frequency DC/AC inverter

AC/DCfor railway applicationsmodular

Product overview
Mitsubishi Electric provides flexible and easy-to-customize traction inverters and converters based on standard reference units. Key product highlights include lightweight construction, various customization options and a compact footprint.

Key product attributes

• Lightweight construction
• Various customization options
• Compact footprint

Features

• High reliability: traction inverters and converters designed according to international standards and Mitsubishi Electric accumulated technology.
• Customization concept: as part of a new-generation traction system, the units cover a wide power range and multiple specifications to meet customer requirements.
• High power and high efficiency: three power device options available to address high-power and high-efficiency needs.
• Reduced design and manufacturing time: optimized designs to minimize development and production lead times.

Related document
Railcar Traction Inverter (related technical/download document available).

Technical specifications

• Application: traction inverters and converters for railway vehicles
• Power supply types supported: DC/AC
• Nominal voltage range (example/customizable): 750 V to 3000 V
• Frequency options supported: 50 Hz, 60 Hz, 16.7 Hz
• Vehicle types supported: EMU, DEC, Loco, High Speed
• Optional configurations: DC/DC converter with Li‑Ion battery
• Design focus: high reliability, high efficiency, lightweight and compact construction, customizable to customer specifications
