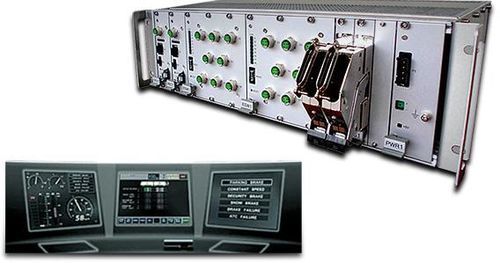

Monitoring control system TCMS

analysisautomationcentralized

Overview
Employs high-speed, high-volume Ethernet conforming to international standards to enable train-wide communications between onboard systems and wayside equipment. Provides a high-bandwidth backbone for control, monitoring and maintenance data exchange with WMDS.

Features

• Support Ethernet network: High-speed, open network architecture compliant with IEC 61375 (Ethernet train backbone).
• Reduction of hard-wires: Minimizes in-car wiring by transmitting control commands and supporting remote I/O modules.
• Data transmission to WMDS: Enables remote monitoring, fault diagnosis and parameter setting of onboard equipment via WMDS.
• Integrated train-wide control: Centralised management of onboard subsystems to optimise operation and energy use.

Applications
Train control and monitoring solution designed for Light Rail Vehicles (LRV).

Technical specifications

• High-speed, high-volume Ethernet communication for train-wide networks.
• Compliant with IEC 61375 (Ethernet train backbone).
• Supports remote I/O to reduce in-car wiring.
• Enables remote monitoring, diagnosis and parameter setting via WMDS.
• Provides integrated control of onboard equipment to improve operational efficiency and energy performance.
