Electric stacker truck SBS12N2TF
side-facing seated24 Vfor warehouse

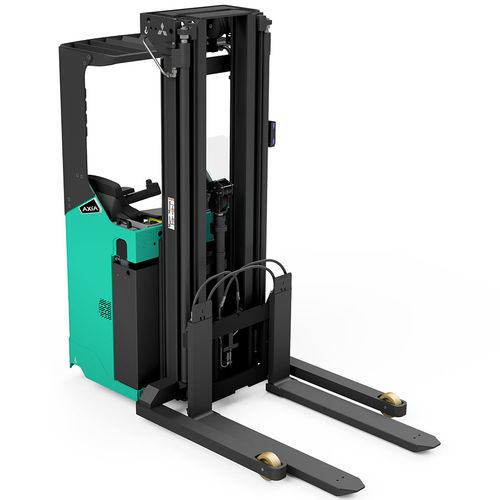

Electric stacker truck - SBS12N2TF - Mïtsubishi Forklift Trucks - side-facing seated / 24 V / for warehouse
Electric stacker truck - SBS12N2TF - Mïtsubishi Forklift Trucks - side-facing seated / 24 V / for warehouse
Electric stacker truck - SBS12N2TF - Mïtsubishi Forklift Trucks - side-facing seated / 24 V / for warehouse - image - 2
Electric stacker truck - SBS12N2TF - Mïtsubishi Forklift Trucks - side-facing seated / 24 V / for warehouse - image - 3
Electric stacker truck - SBS12N2TF - Mïtsubishi Forklift Trucks - side-facing seated / 24 V / for warehouse - image - 4
Electric stacker truck - SBS12N2TF - Mïtsubishi Forklift Trucks - side-facing seated / 24 V / for warehouse - image - 5
Electric stacker truck - SBS12N2TF - Mïtsubishi Forklift Trucks - side-facing seated / 24 V / for warehouse - image - 6
Electric stacker truck - SBS12N2TF - Mïtsubishi Forklift Trucks - side-facing seated / 24 V / for warehouse - image - 7
Electric stacker truck - SBS12N2TF - Mïtsubishi Forklift Trucks - side-facing seated / 24 V / for warehouse - image - 8
Add to favorites
Compare this product

Characteristics

Energy
electric
Operator
side-facing seated
Voltage
24 V
Applications
for materials handling, for warehouse, pallet, for lifting, loading, narrow-aisle, storage, unloading
Other characteristics
compact, high-performance, low-noise, with telescopic forks
Carrying capacity

1,200 kg
(2,645.5 lb)

Overall width

1,010 mm, 1,150 mm
(39.8 in, 45.3 in)

Overall length

2,347 mm
(92.4 in)

Fork width

169 mm
(6.7 in)

Fork length

1,200 mm
(47.24 in)

Fork thickness

57 mm
(2.24 in)

Turning circle radius

1,861 mm
(73.3 in)

Battery capacity

465 Ah

Motor power traction

2.7 kW
(3.671 hp)

Motor power lifting

8 kW
(10.877 hp)

Travel speed

8 km/h
(4.97 mph)

Lifting speed

0.15 m/s, 0.26 m/s
(0.492 ft/s, 0.853 ft/s)

Weight

2,178 kg
(4,801.67 lb)

Description

AXiA sit-on stackers are a flexible and cost-effective choice for stacking and internal transport in warehousing, manufacturing, and anywhere else safe, productive stacking is required. Platform stackers are more commonly used for these tasks but typically have lower maximum lift heights. AXiA XL models with telescopic forks enable more flexible handling of long loads and work with double deep racking setups. Double deep racking stores four pallets between aisles, reducing storage cost per square meter by up to 17% and increasing pallet locations by 25–30%. Many businesses will also use reach trucks for stacking tasks where even a light reach truck may be over-specified for the job. If the work requires lifting to 7 m or less, the AXiA sit-on stacker makes for an excellent low-cost alternative. Easy maintenance, high performance, long service intervals, and Mitsubishi Forklift Trucks reliability make for a powerful package. Mini steering wheel with floating armrest This ergonomically adjustable control setup makes operating far more comfortable for the driver during long shifts. This not only minimises fatigue, keeping them more focused and productive, but reduces the risk of RSI and other strains in the neck and shoulders, a common cause of driver absence which comes with related costs.
