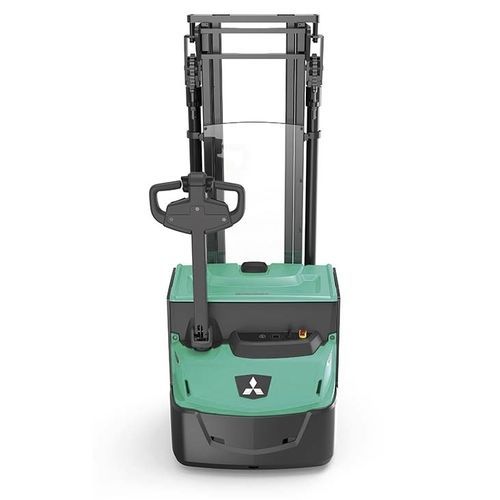

Electric stacker truck SBP series
walk-behindstand-on24 V

electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
electric stacker truck
Add to favorites
Compare this product


Characteristics

Energy
electric
Operator
walk-behind, stand-on
Voltage
24 V
Applications
transport, for warehouse, for materials handling, narrow-aisle, storage
Other characteristics
compact, straddle
Carrying capacity

1,000 kg, 1,200 kg, 1,250 kg, 1,400 kg, 1,600 kg
(2,204.6 lb, 2,645.5 lb, 2,755.8 lb, 3,086.5 lb, 3,527.4 lb)

Lifting height

1,700 mm, 2,000 mm
(66.93 in, 78.74 in)

Height of mast when raised

2,145 mm, 2,445 mm
(84.45 in, 96.26 in)

Overall width

660 mm, 800 mm, 1,140 mm, 1,575 mm
(26 in, 31.5 in, 44.9 in, 62 in)

Overall length

Min.: 975 mm
(38.4 in)

Max.: 2,605 mm
(102.6 in)

Fork width

185 mm, 186 mm
(7.3 in, 7.3 in)

Fork length

1,150 mm, 1,200 mm
(45.28 in, 47.24 in)

Fork thickness

56 mm, 65 mm
(2.2 in, 2.56 in)

Turning circle radius

Min.: 1,458 mm
(57.4 in)

Max.: 2,452 mm
(96.5 in)

Battery capacity

Min.: 150 Ah

Max.: 375 Ah

Motor power traction

1 kW, 1,300 kW
(1.36 hp, 1.768 hp)

Motor power lifting

2,200 W, 2,350 W, 3,200 W
(2.991 hp, 3.195 hp, 4.351 hp)

Travel speed

5.7 km/h, 6 km/h
(3.54 mph, 3.73 mph)

Lifting speed

Min.: 0.1 m/s
(0.328 ft/s)

Max.: 0.3 m/s
(0.984 ft/s)

Weight

Min.: 730 kg
(1,609.37 lb)

Max.: 1,440 kg
(3,174.66 lb)

Description

The compact AXiA ES stacker range has the shortest chassis on the market, allowing it to work in extremely narrow aisles so you can get the most out of your storage space. Unaffected by dirt, debris, dust and water thanks to its sealed protective chassis and waterproof components (rated to IP54), the AXiA ES will work dependably indoors or out with minimum maintenance. AXiA ES offers two operating modes. ECO mode is suitable for new operators as it limits speed for smooth movement. PRO mode supports faster speeds for optimum performance and productivity. For operation on ramps and uneven floors, initial lift (i) models are the best choice. A straddle leg version is available for handling bottom-boarded pallets up to a width of 1200 mm. Foldable platforms for occasional ride-on use are available on the 1.2 to 1.6 tonne stackers. Controls are located on both the left and right sides of the market-leading ErgoSteer tiller head, making the truck safer and easier to operate, with less fatigue over a shift. Waterproof and dustproof chassis Its sealed chassis, combined with IP54 waterproofing increases uptime and productivity. It can even work in harsh environments. Heavy duty, wide vision mast Conventional forklift mast construction with good rigidity ensures great visibility and residual capacity. Cast iron drive unit Industrial-designed, heavy-duty, cast iron drive unit with gears running in an oil bath ensures maximum durability. Low centre of gravity Provides high residual lifting capacity and increased stability.
