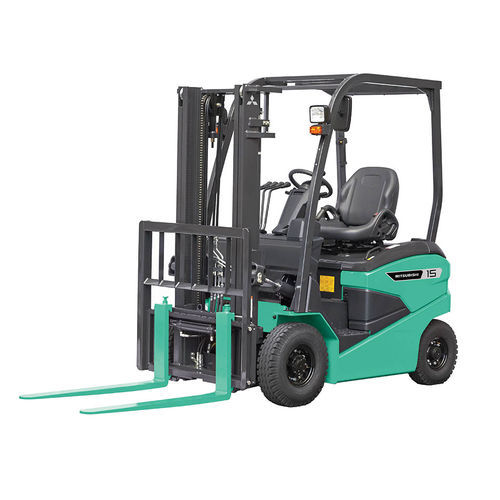

Electric forklift truck FB10-35(L)CB ride-onindooroutdoor
Add to favorites
Compare this product
Characteristics
- Motor type
- electric
- Operator
- ride-on
- Applications
- handling, industrial, for warehouse, indoor, outdoor
- Other characteristics
- 4-wheel, counterbalanced, compact, high-performance, low-noise, waterproof
- Carrying capacity
Min.: 1,000 kg
(2,204.6 lb)Max.: 3,500 kg
(7,716.2 lb)- Lifting height
3,000 mm
(118.11 in)- Overall width
1,100 mm, 1,155 mm, 1,255 mm
(43.3 in, 45.5 in, 49.4 in)- Overall length
Min.: 3,150 mm
(124 in)Max.: 3,670 mm
(144.5 in)- Load center distance
500 mm
(19.7 in)- Weight without load
Min.: 2,935 kg
(6,470.6 lb)Max.: 5,425 kg
(11,960.1 lb)- Axle loading with maximum load front
Min.: 3,065 kg
(6,757.2 lb)Max.: 7,825 kg
(17,251.2 lb)- Axle loading with maximum load rear
Min.: 110 kg
(242.5 lb)Max.: 990 kg
(2,182.6 lb)- Axle loading without load front
Min.: 1,415 kg
(3,119.5 lb)Max.: 2,275 kg
(5,015.5 lb)- Axle loading without load rear
Min.: 1,270 kg
(2,799.9 lb)Max.: 3,160 kg
(6,966.6 lb)- Track width front
Min.: 925 mm
(36.4 in)Max.: 1,030 mm
(40.6 in)- Track width rear
Min.: 900 mm
(35.4 in)Max.: 980 mm
(38.6 in)- Height of mast when lowered
1,990 mm, 1,995 mm, 2,015 mm, 2,115 mm
(78.3 in, 78.5 in, 79.3 in, 83.3 in)- Free lift
115 mm, 140 mm, 145 mm
(4.5 in, 5.5 in, 5.7 in)- Overall height with mast raised
4,055 mm
(159.6 in)- Height to top of overhead guard
2,110 mm, 2,200 mm
(83.1 in, 86.6 in)- Seat height
1,005 mm, 1,150 mm
(39.6 in, 45.3 in)- Tow couplig height
490 mm, 595 mm
(19.3 in, 23.4 in)- Length to fork face
Min.: 2,080 mm
(81.9 in)Max.: 2,600 mm
(102.4 in)- Fork carriage width
920 mm, 1,000 mm
(36.2 in, 39.4 in)- Ground clearance under mast with load
110 mm, 115 mm, 135 mm
(4.3 in, 4.5 in, 5.3 in)- Ground clearance at center of wheelbase with load
110 mm, 120 mm
(4.3 in, 4.7 in)- Turning circle radius
Min.: 1,850 mm
(72.8 in)Max.: 2,330 mm
(91.7 in)- Minimum distance between centres of rotation
Min.: 557 mm
(21.9 in)Max.: 769 mm
(30.3 in)- Travel speed
Min.: 13.5 km/h
(8.4 mph)Max.: 16 km/h
(9.9 mph)- Lifting speed
Min.: 0.26 m/s
(0.853 ft/s)Max.: 0.55 m/s
(1.804 ft/s)- Lowering speed
Min.: 0.31 m/s
(1.017 ft/s)Max.: 0.505 m/s
(1.657 ft/s)- Rated drawbar pull
Min.: 2,350 N
Max.: 3,350 N
- Gradeability
Min.: 3.5 %
Max.: 10 %
- Rated output
7 kW, 8.5 kW, 11 kW
(9.5 hp, 11.6 hp, 15 hp)- Maximum operating pressure
137 bar, 157 bar, 172 bar, 181 bar
(1,987 psi, 2,277.1 psi, 2,494.6 psi, 2,625.2 psi)- Oil flow
50 l/min, 55 l/min, 75 l/min
(13.2 us gal/min, 14.5 us gal/min, 19.8 us gal/min)- Noise level
75 dB
Description
Combining exceptional ergonomics, a host of safety features, and outstanding energy efficiency, the FB-CB series is an electric forklift that offers the ideal combination of high productivity with low running costs.
Reliability has been a hallmark of our trucks for decades and the FB-CB series is no different. Its robust, high-quality construction can handle the tough jobs, and downtime is kept to a minimum thanks to a low maintenance design and easily accessible service points.
A wide range of drivers are catered for with the spacious and comfortable operator compartment, easily adapted to suit their ideal driving position. Low noise, low vibration and high visibility make for more productive working with lower fatigue even through longer shifts.
The FB-CB series offers nine 48 V models with capabilities ranging from 1.0–2.5 tonnes and two 72 V models of 3.0–3.5 tonnes for heavier applications. Combine that choice with a large number of optional features and a waterproof rating of IPx4, and you have remarkably versatile electric trucks that can drive the heart of your operations, indoors and out.
Curve control
Reduces speed going into corners to keep travel smooth and reduce force on the load during transit.
Spacious ergonomic cabin
Because the truck is only as productive as its operator, the FBCB offers ample room and adjustability to keep drivers comfortable throughout their shift.
