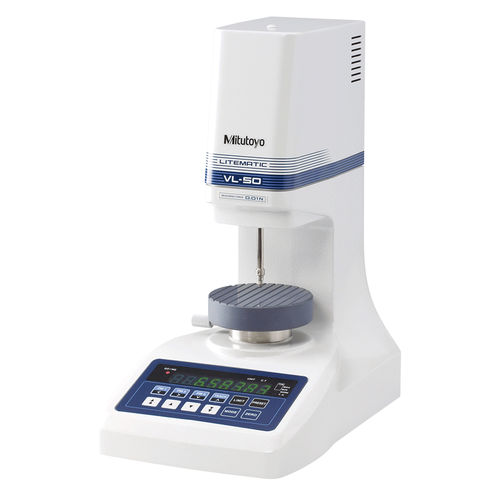

Length measuring instrument LITEMATIC VL-50 series
thicknessforcelaser

length measuring instrument
length measuring instrument
length measuring instrument
length measuring instrument
Add to favorites
Compare this product


Characteristics

Measured value
length, thickness, force
Technology
laser
Configuration
benchtop
Other characteristics
high-precision

Description

Providing low and constant measuring force for high-accuracy inspection of délicate workpieces LITEMATIC VL-50-B/50S-B • - Patent registered (Japan), Patent pending (Japan) Idéal for measuring the thickness or height of a workpiece that can be easily affected by the measuring force • - With a measuring force of only 0.01 N, the Litematic is idéal for measuring easily deformed workpieces or high-accuracy components. • - For workpieces for which 0.01 N is insufficient, either the 0.15N or 1 N model is recommended. • - The spindle is motor-driven and stops when the contact point touches the workpiece. From then on, the maximum, minimum, or différence value can be measured using a constant measuring force. High-accuracy measurement • - High resolution dosvn to 0.01 pm and a wide 50 mm measurement range. The use of a low thermal-expansion material for the spindle and ceramic for the measuring table minimizes the effect of température variation during use. The unit is rust-free, simplifying maintenance and management. Constant measuring force principle An unbalanced, parallel-link structure enables the Utematk to offer a low and constant measuring force. The Litematic's measuring force is not provided by a spring but cornes from a structure resembling a balance scale. We call this a "parallel linkage." A motorized slider carrying the linked spindle moves down its guideway while the linkage is supported on a stop, as shown in Fig 1. When the spindle contacts the workpiece (Fig. 2) it moves the linkage up off the stop and the motor is halted. At this point the linkage is now supported by the workpiece, and thus a constant measuring force is applied.
