STANDARD CONSTRUCTION -

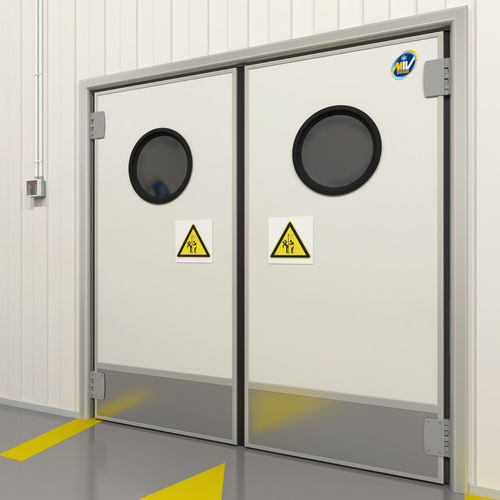

Semi-insulating bidirectional hinged door, for internal application with positive temperature rooms
Installation on panel or masonry wall
40mm thick aluminum door leaf
Internal and external coating in white plasticoated metalsheet
Door leaf injected with polyurethane foam “PUR” CFC free 40-42 Kg/cu.mtr density
Bidirectional opening with 90° block
Anodized aluminum frame and counterframe for different thicknesses (from mm 60 to mm 90 and from mm 91 to mm 120)
Anti-shearing EPDM gaskets are applied on the leaf (vertical edges)
Internal and external protection, h.300 mm, made of stainless steel
Transparent polycarbonate porthole 350mm diameter
Hidden frame fixing screws
Without threshold
