Hydraulic shear ALS series

for scrap metalfor metalfor cables

Overview

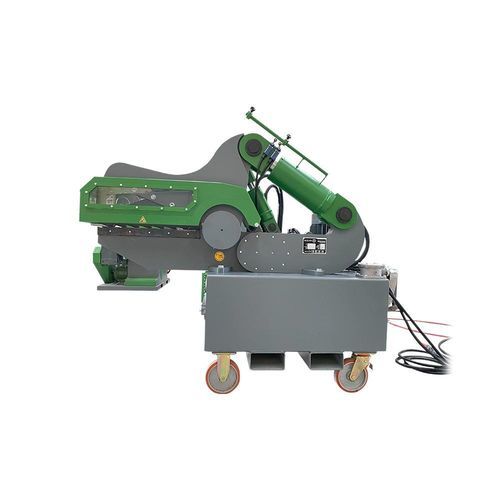

MIZAR ALS is a hydraulic alligator shear engineered for cutting scrap cables and mixed metals in industrial recycling and scrap-processing environments. Cylinder shafts are induction-hardened and chrome-plated for extended service life. The machine is fitted with specially processed tool-steel blades, a Bosch Rexroth hydraulic unit and Siemens electrical/electronic components. Units are manufactured and certified to CE and EAC standards.

Recyclable Materials

• Cable
• Multi metal

Technical specification
ALS S
TOTAL POWER: 7.5 kW / 10 HP
BLADE LENGTH: 400 mm / 15.7 in
CUTTING SPEED: 7 cut/min
OVERALL LENGTH: 1.650 mm / 64.9 in
OVERALL WIDTH: 820 mm / 32.2 in
OVERALL HEIGHT: 1.600 mm / 63 in
OVERALL WEIGHT: 1.250 kg / 2,760 lb

ALS M
TOTAL POWER: 7.5 kW / 10 HP
BLADE LENGTH: 600 mm / 23.6 in
CUTTING SPEED: 7 cut/min
OVERALL LENGTH: 1.650 mm / 64.9 in
OVERALL WIDTH: 820 mm / 32.2 in
OVERALL HEIGHT: 1.600 mm / 63 in
OVERALL WEIGHT: 1.300 kg / 2,870 lb

Key features

• Induction-hardened, chrome-plated cylinder shafts
• Tool-steel blades with specialised processing
• Bosch Rexroth hydraulic unit
• Siemens electrical and electronic components
• Compact footprint for integration into processing lines

Applications
Suitable for recycling centres, scrap yards and industrial plants processing cables and mixed metal scrap. Designed for continuous operation in heavy-duty environments.
