belt conveyor / horizontal
FB13 series

Add to MyDirectIndustry favorites
Compare this product
belt conveyor / horizontal belt conveyor / horizontal - FB13 series
{{requestButtons}}

Characteristics

  • Technology:

    belt

  • Other characteristics:

    horizontal

  • Maximum load:

    Min.: 5 kg (11.023 lb)

    Max.: 30 kg (66.139 lb)

  • Speed:

    Min.: 200 mm/min (0.13 in/s)

    Max.: 30,000 mm/min (19.69 in/s)

Description

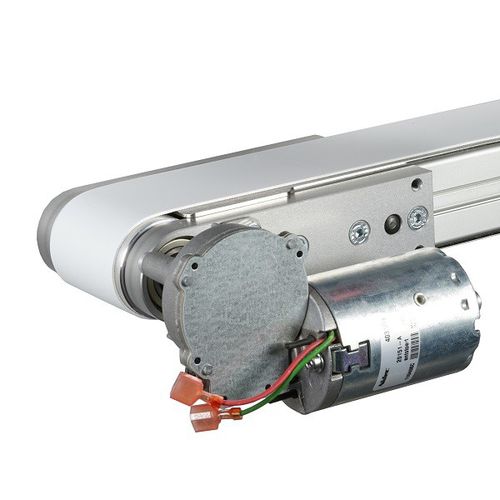

The FB 13 series is a small belt conveyor that possesses a width that ranges from 60 to 400mm. It is characterized by its 24 volt gear motor that runs in a direct current. This miniature belt conveyor is integrated with a Bosch profile system that enable versatile assembly options. Its plates are fabricated from anodised aluminum and its screws are fully galvanized. The pulleys of this belt conveyor are constructed from aluminum and are attached with ball bearings.
