NTP time server DTS 4163

SNTPPTPPRP

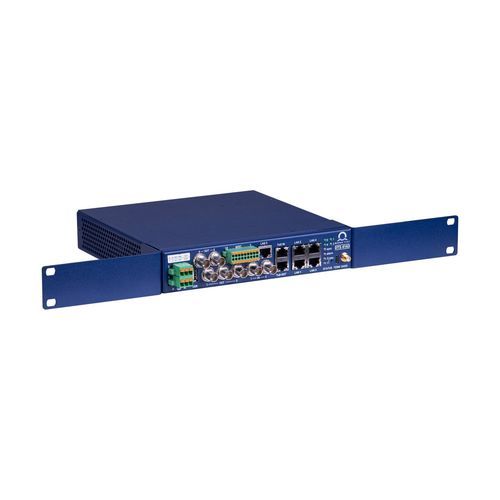

The DTS 4163.grandmaster is a PTP grandmaster specifically designed for IEC 61850 digital substations, providing precise time synchronization with redundant operation to increase reliability and availability.

Highlights

• PTP grandmaster optimized for IEC 61850 digital substations (PRTC / IEEE 1588-2008; compatible with IEEE 1588-2019 / PTPv2.1).
• PRP/HSR support for dual-attached node operation and seamless redundancy.
• Four fully PTP-capable Gigabit Ethernet ports (RJ45 or SFP) plus a dedicated management interface.
• Security features including secure boot, encrypted user data and signed firmware.
• High-capacity NTP server handling over 10,000 NTP/SNTP requests per second.
• Integrated multi-constellation GNSS receiver (GPS, Galileo, GLONASS, BeiDou, SBAS) for improved accuracy and availability.
• Boundary clock capability to bridge multiple time domains.
• Oscillator options (TCXO / OCXO / Rubidium) to enhance holdover performance.
• Legacy time outputs (IRIG, ToD, DCF, pulse, frequency) and event timestamping for integration with older systems.
• Full monitoring and management via MOBA-NMS.

Technical features (functional overview)

• Oscillator: TCXO / OCXO / Rubidium options.
• Network interfaces: 4x 100/1000BaseT (LAN 1–4) or 4x SFP; plus 1x 100/1000BaseT (LAN 5) for management.
• Network capabilities: PTP grandmaster / SyncE master; NTP v4/v3 and SNTP; IPv4/IPv6 support; Link aggregation (IEEE 802.3ad) on LAN 2 & 3; VLAN (802.1Q, 802.1p); static routing; IGMP/multicast.
• Reference inputs: GNSS RF (internal 92-channel receiver), 2x PTP slave inputs, DCF current loop, 2x F-IN (1 PPS, 10 MHz, 2.048 MHz).
• Reference outputs (network): PTP on LAN 1–4 (E2E, P2P, 1-step/2-step, multicast, layer 2, IPv4/IPv6); SyncE/ESMC; NTP server modes; SNTP; TIME/DAYTIME.
• Reference outputs (non-network): 3–4x precision pulse/frequency outputs (1PPS–10 MHz or IRIG-B), IRIG-B analog, ToD, RS-422 serial, configurable event switches and timestampers.
• Supported PTP profiles: E2E/P2P (IEEE 1588-2008), Power (IEEE C37.238 / IEC 61850-9-3), Telecom (ITU-T G.8265.1, G.8275.x), AVB/TSN (IEEE 802.1AS).
• Alarms & notifications: relay contact, SNMP traps, email alerts, Alarm LED, Syslog.
• Management: MOBA-NMS compatibility; USB-C and SSH terminal access; SNMP v1/v2c/v3; firmware via SCP/SFTP/USB.
• Security: hardware secure boot; encrypted/signed firmware; secure access (SSH, SCP, SFTP); aligned with IEC 62443-4-2 guidelines.

Technical specifications

• Dimensions: 222 x 44 x 222 mm (with rack kit: 483 x 44 x 222 mm, 19", 1U).
• Weight: approx. 2.0 kg (depending on version).
• Housing: steel, powder coated.
• Protection degree: IP20.
• Operating temperature: -20 to 50 °C.
• Operating humidity: 5–95% RH, non-condensing.
• Cooling: active or fanless passive options.
• Power supply: varies by version (see product documentation).
• Approvals: CE, UKCA, CB, RoHS, WEEE; EMC: IEC 61850-3, IEC 61000 series; Safety: IEC 62368-1.
• Accuracy (typical): GNSS to internal < ±50 ns; PTP to internal < ±50 ns; various outputs per documentation.
