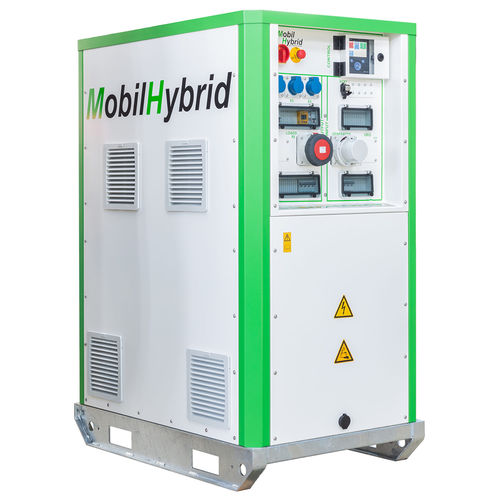

Electric vehicle charging station MH24
DCACoutdoor

electric vehicle charging station
electric vehicle charging station
Add to favorites
Compare this product


Characteristics

Options
for electric vehicles, DC, AC, outdoor

Description

The M obile H YBRID MH-24 Every MobilHybrid has a protective function against overload, overtemperature, short circuit and deep discharge Protection class IP54 Combined with our M obile PV installations Weight:1480 kg size:1200 × 800 × 1690 cm Size:C. Continuous output VA at 25 ° V:24000 Peak power VA 25 ° C 5 sec:60000 Output voltage AC:3 AC 230/400 V. Input current max. AC:100A 3ph Max. Output current (with external AC source):63 A option: 125A (125A) Protective functions:Overload, overtemperature, short circuit, discharged battery Earth fault protection:125 A 3ph 300 mA FI Usable battery capacity kWh:24 Input connector - :63A option: CEE 125A 3ph Output connector A:63A option: CEE 125A 3ph Output connector B:3 x Schuko 16A IP54 Charging time to full charge:2.5h Auxiliary contact (remote start diesel gen.):Harting HAN-7D Battery monitoring:LCD display: voltages, power, remaining battery capacity, range, charging cycle history Battery cycles:1200 Protection class:IP54 Operating temperature range:-10 ° C to + 45 ° C Optional photovoltaic connection:MPPT controller with up to 8kWp connectable module power
