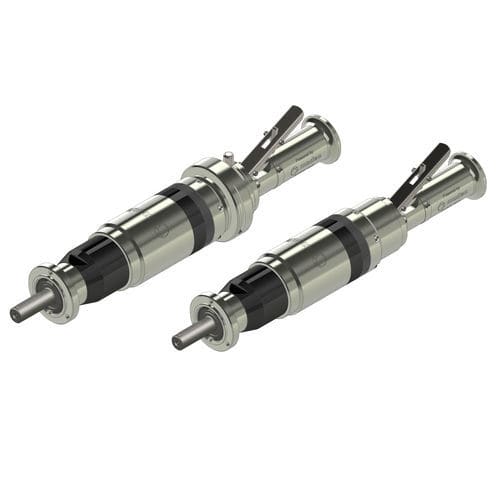

Planetary gear air motor NTS 25 seriesvaneATEXcompact
Add to favorites
Compare this product
Characteristics
- Technology.
- vane, planetary gear
- Other characteristics
- ATEX, compact
- Torque
Min.: 13 Nm
(9.59 ft.lb)Max.: 289 Nm
(213.16 ft.lb)- Rotational speed
Min.: 106 rpm
(666.02 rad.min-1)Max.: 2,759 rpm
(17,335.31 rad.min-1)- Power
Min.: 1,497 W
(2.04 hp)Max.: 2,722 W
(3.7 hp)
Description
Frequently used in bolting applications with high torques, the "25" series air motors are often equipped with an angle drive head and a high flow control handle to ensure they have the necessary power.
The "25" series air motors can be found on lifting applications with torques approaching 1000 Nm. or on cutting applications with speeds above 11000 rpm.
Their high power (2700W) does not prevent them from being compact and light (3 to 12 kg.depending on the chosen configuration) and very versatile.
