Roller mill 800 F series

horizontalfor coffeestainless steel

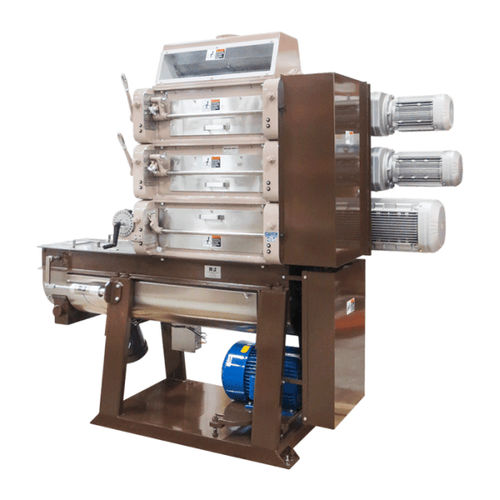

800 F Series MODEL 800 F SERIES COFFEE GRANULIZER * IMD 88 F(X) – TWO (2) GRINDING SECTIONS, INDEPENDENT MOTOR DRIVES * 800 F(X) – TWO (2) GRINDING SECTIONS, (X) = OPTIONAL ESPRESSO CONFIGURATION * 888 E – RECONDITIONED, GUMP-STYLE GRANULIZER Application Espresso (200 – 450 μm): Up to 1,750 lb/hr (800 kg/hr) Filter (500 – 1,000 μm): Up to 4,000 lb/hr (1,800 kg/hr) Capacity Up to 4,000 lb/hr (1,800 kg/hr) Sections 2 or 3 Product Description The Model 800 F is one of the world’s most popular industrial coffee grinders. Exceptional particle size performance on a range of grind sizes and consistent results differentiate the 800 F from other grinder designs. Additionally, the 800 F offers a number of options, such as PLC control, water-cooling and density control to further improve ground coffee quality and consistency. Features - Variable speed power feeder - Infinite roll gap adjustment - Rugged construction and spring-mounted rolls - Roll surface options and precision tolerances - Integrated normalizer with density control and chaff reduction - Extreme hardness roll coatings - High torque drive belt for quiet, low-maintenance operation Available Options - Semi-automatic control system - Water-cooled rolls and normalizer - Closed-loop water chiller - Integrated magnet and pneumatic slide gate - Feed hopper - Stainless steel or electroless nickel construction - Gas-tight or hermetically-sealed design - Independent Motor Drives (IMD) for each grinding section offer highest capacity
