Horizontal conveyor
curvedverticalZ type

Horizontal conveyor - MODU System (M) Sdn.Bhd. (MODU Group) - curved / vertical / Z type
Horizontal conveyor - MODU System (M) Sdn.Bhd. (MODU Group) - curved / vertical / Z type
Add to favorites
Compare this product
Go to the MODU System (M) Sdn.Bhd. (MODU Group) website for more information

Characteristics

Form
horizontal, curved, vertical, straight, Z type
Function
transport, handling, transfer, loading, accumulation, sorting, storage, distribution, positioning, pasteurizer
Construction
modular, flexible
Drive mechanism
electric drive, automatic, chain drive, manual
Transported product
food, for bulk materials, for pallet, for small parts, chip, for plastic pellets, flexible
Applications
for medium loads, for small loads, process, for clean rooms, for industrial bakeries
Sector
for the food industry, for the pharmaceutical industry, for assembly, medical, for packaging lines, for the cosmetics industry
Options and accessories
with manual length stop positioning, with storage area, with feed hopper, with parallel track storage, with integrated filtration
Other characteristics
custom-made, continuous, variable speed, high-capacity, friction
Maximum load

Max.: 400 kg
(881.849 lb)

Speed

Max.: 50 m/min

Effective width

140 mm
(6 in)

Length

Max.: 30 m
(98'05" )

Chain pitch

44.5 mm
(1.752 in)

Weight

Max.: 25 kg
(55.12 lb)

Working temperature

Min.: -10 °C
(14 °F)

Max.: 60 °C
(140 °F)

Description

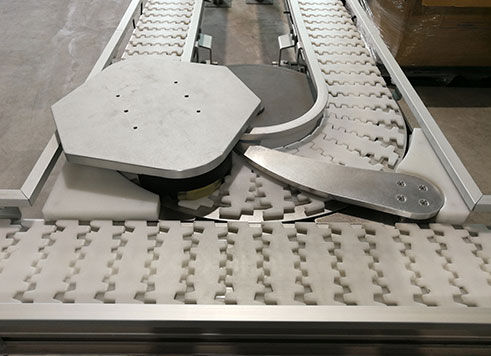

MODU Pallet Handling System is a modular pallet conveyor solution designed for the continuous and reliable movement of pallets and slave boards between production processes, assembly stations and workstations. It provides standardized and consistent material flow, helping streamline production processes and reduce manual handling, production delays and material movement inefficiencies.

The Single Track Pallet Handling Conveyor is designed to transport pallets and slave boards from one process or assembly station to another. Its modular conveyor system offers flexible and configurable layouts, allowing pallet conveyor modules to be easily integrated with production equipment, workstations and automated assembly lines.

Suitable for pallet handling, pallet conveying, pallet transfer, assembly line automation, production line material handling and automated manufacturing applications. The plug-and-play modular design allows the pallet handling system to be configured according to different product flow, workstation and production requirements.
